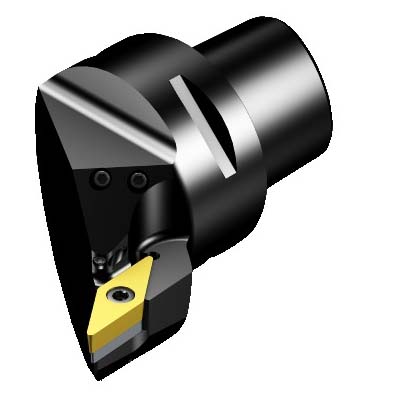

Sandvik Coromant 6066657 CoroTurn® 107 Turning Cutting Unit, 2.559 in, 4.0551 in OAL, Left Hand
Custom_Product_Images_Illustration
Sandvik Coromant 6066657 CoroTurn® 107 Turning Cutting Unit, 2.559 in, 4.0551 in OAL, Left Hand
SKU1241361
MFGR #6066657
Your Cost: $905.95/ea
Sandvik Coromant Turning Cutting Unit, Series: CoroTurn® 107, 2.559 in Head Length/Projection, 4.0551 in Overall Length, V-35 deg Diamond Insert, Insert Compatibility: VBMT 160408 and VCMT 160408, Left Hand Cutting, 1.7716 in Center to Cutting Edge, Steel
Sandvik Coromant Turning Cutting Unit, Series: CoroTurn® 107, 2.559 in Head Length/Projection, 4.0551 in Overall Length, V-35 deg Diamond Insert, Insert Compatibility: VBMT 160408 and VCMT 160408, Left Hand Cutting, 1.7716 in Center to Cutting Edge, Steel
Alternate Catalog Number C6-SVUBL-45065-16HP Catalog Number 6066657 Country of Origin IN Gross Weight Per Pack 3.1000 lb Head Length|Projection 65 mm Insert Style VBMT Item Group 410 Material Steel Overall Length 103 mm Series CoroTurn® 107 UPC 11 69826256052 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Center to Cutting Edge 45 mm Cutting Direction Left Hand Insert Compatibility VBMT 160408 Insert Holding Method Screw Clamp Internal or External Internal/External System Size C6 Unobstructed chip flow|Excellent chip control|Exceptional surface finish 20 life cycle state 0 deg body workpiece side Axial concentric and radial coolant entry 80 bar coolant 40 - 60 deg insert screw clamping Decentral focused coolant exit with nozzles 63 mm Dia connection 85 mm Dia minimum bore 93 deg cutting edge 0 deg inclination 0 deg ramping 3 Nm torque 3/8 in insert seat size 65 mm maximum overhang -3 deg lead 0 deg rake Bolt and segment clamping adaptive interface ANSI Code: C6-SVUBL-45065-16HP ISO Code: C6-SVUBL-45065-16HP
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | C6-SVUBL-45065-16HP |
| Catalog Number | 6066657 |
| Country of Origin | IN |
| Gross Weight Per Pack | 3.1000 lb |
| Head Length|Projection | 65 mm |
| Insert Style | VBMT |
| Item Group | 410 |
| Material | Steel |
| Overall Length | 103 mm |
| Series | CoroTurn® 107 |
| UPC 11 | 69826256052 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Center to Cutting Edge | 45 mm |
| Cutting Direction | Left Hand |
| Insert Compatibility | VBMT 160408 |
| Insert Holding Method | Screw Clamp |
| Internal or External | Internal/External |
| System Size | C6 |
| Unobstructed chip flow|Excellent chip control|Exceptional surface finish |
| 20 life cycle state |
| 0 deg body workpiece side |
| Axial concentric and radial coolant entry |
| 80 bar coolant |
| 40 - 60 deg insert screw clamping |
| Decentral focused coolant exit with nozzles |
| 63 mm Dia connection |
| 85 mm Dia minimum bore |
| 93 deg cutting edge |
| 0 deg inclination |
| 0 deg ramping |
| 3 Nm torque |
| 3/8 in insert seat size |
| 65 mm maximum overhang |
| -3 deg lead |
| 0 deg rake |
| Bolt and segment clamping adaptive interface |
| ANSI Code: C6-SVUBL-45065-16HP |
| ISO Code: C6-SVUBL-45065-16HP |
