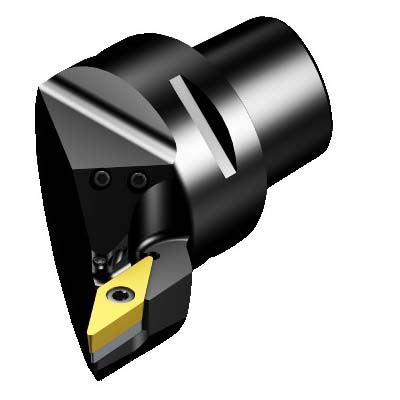

Sandvik Coromant 6066656 CoroTurn® 107 Turning Cutting Unit, 1.9685 in, 2.9133 in OAL, Right Hand, VBMT 160408 and VCMT 160408 Insert
Modular Turning/Profiling Cutting Heads
1230893
MFG #: 6066656
Sandvik Coromant
646.86000
/ ea
Sandvik Coromant Turning Cutting Unit, Series: CoroTurn® 107, 1.9685 in Head Length/Projection, 2.9133 in Overall Length, V-35 deg Diamond Insert, Insert Compatibility: VBMT 160408 and VCMT 160408, Right Hand Cutting, 1.0629 in Center to Cutting Edge, Steel
- Features
| 0 deg body machine side |
| 20 life cycle state |
| 0 deg body workpiece side |
| Axial concentric and radial coolant entry |
| 80 bar coolant |
| 40 - 60 deg insert screw clamping |
| Decentral focused coolant exit with nozzles |
| 40 mm Dia connection |
| 140 mm Dia minimum bore |
| 93 deg cutting edge |
| 0 deg inclination |
| 50 deg ramping |
| 3 Nm torque |
| 3/8 in insert seat size |
| 50 mm maximum overhang |
| -3 deg lead |
| 0 deg rake |
| Bolt and segment clamping adaptive interface |
| ANSI Code: C4-SVJBR-27050-16HP |
| ISO Code: C4-SVJBR-27050-16HP |
