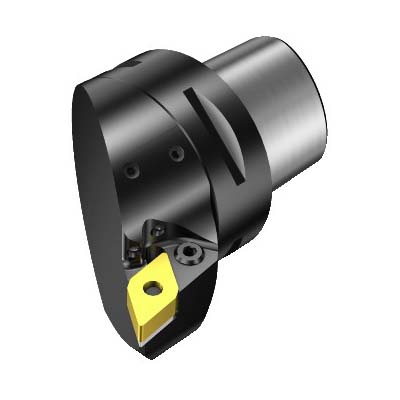

Sandvik Coromant 6066646 T-Max® P Turning Cutting Unit, 1.9685 in, 2.9133 in OAL, Right Hand, DNMG 110408 Insert
Custom_Product_Images_Illustration
Sandvik Coromant 6066646 T-Max® P Turning Cutting Unit, 1.9685 in, 2.9133 in OAL, Right Hand, DNMG 110408 Insert
SKU1230681
MFGR #6066646
Your Cost: $537.39/ea
Sandvik Coromant Turning Cutting Unit, Series: T-Max® P, 1.9685 in Head Length/Projection, 2.9133 in Overall Length, D-55 deg Diamond Insert, Insert Compatibility: DNMG 110408, Right Hand Cutting, 1.0629 in Center to Cutting Edge, Steel
Sandvik Coromant Turning Cutting Unit, Series: T-Max® P, 1.9685 in Head Length/Projection, 2.9133 in Overall Length, D-55 deg Diamond Insert, Insert Compatibility: DNMG 110408, Right Hand Cutting, 1.0629 in Center to Cutting Edge, Steel
Alternate Catalog Number C4-PDJNR-27050-11HP Catalog Number 6066646 Center to Cutting Height 90mm Country of Origin IN Finish T-Max® P Gross Weight Per Pack 0.6600 lb Head Length|Projection 1.9685 in Insert Style D-55 deg Diamond Item Group 410 Master Insert DNMG 11 04 08 Material Steel Overall Length 2.9133 in Series T-Max® P Torque Newton Meters 5 Type Right Hand UPC 11 69826255908 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Center to Cutting Edge 1.0629 in Cutting Direction Right Hand Insert Compatibility DNMG 110408 Insert Holding Method Steel Internal or External External Number of Inserts 0.375 System Size C4 0 deg body machine side 20 life cycle state 0 deg body workpiece side Axial concentric and radial coolant entry 80 bar coolant Lever hole clamping Decentral focused coolant exit with nozzles 40 mm Dia connection 90 - 145 mm Dia minimum bore 93 deg cutting edge -7 deg inclination 27 deg ramping 5 Nm torque 3/8 in insert seat size 50 mm maximum overhang -3 deg lead -6 deg rake Bolt and segment clamping adaptive interface ANSI Code: C4-PDJNR-27050-11HP ISO Code: C4-PDJNR-27050-11HP
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | C4-PDJNR-27050-11HP |
| Catalog Number | 6066646 |
| Center to Cutting Height | 90mm |
| Country of Origin | IN |
| Finish | T-Max® P |
| Gross Weight Per Pack | 0.6600 lb |
| Head Length|Projection | 1.9685 in |
| Insert Style | D-55 deg Diamond |
| Item Group | 410 |
| Master Insert | DNMG 11 04 08 |
| Material | Steel |
| Overall Length | 2.9133 in |
| Series | T-Max® P |
| Torque Newton Meters | 5 |
| Type | Right Hand |
| UPC 11 | 69826255908 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Center to Cutting Edge | 1.0629 in |
| Cutting Direction | Right Hand |
| Insert Compatibility | DNMG 110408 |
| Insert Holding Method | Steel |
| Internal or External | External |
| Number of Inserts | 0.375 |
| System Size | C4 |
| 0 deg body machine side |
| 20 life cycle state |
| 0 deg body workpiece side |
| Axial concentric and radial coolant entry |
| 80 bar coolant |
| Lever hole clamping |
| Decentral focused coolant exit with nozzles |
| 40 mm Dia connection |
| 90 - 145 mm Dia minimum bore |
| 93 deg cutting edge |
| -7 deg inclination |
| 27 deg ramping |
| 5 Nm torque |
| 3/8 in insert seat size |
| 50 mm maximum overhang |
| -3 deg lead |
| -6 deg rake |
| Bolt and segment clamping adaptive interface |
| ANSI Code: C4-PDJNR-27050-11HP |
| ISO Code: C4-PDJNR-27050-11HP |
