Sandvik Coromant

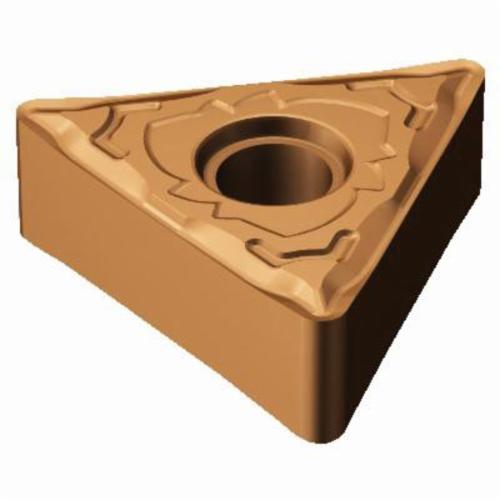

Sandvik Coromant 6066642 T-Max® P Negative Basic Shape Turning Insert, TNMG 333-SF 1125, T-Triangle, TNMG Insert, 1125
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 6066642 T-Max® P Negative Basic Shape Turning Insert, TNMG 333-SF 1125, T-Triangle, TNMG Insert, 1125
SKU1245052
MFGR #6066642
Your Cost: $15.26/ea
List: Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, TNMG Insert, T-Triangle, 2 mm Maximum Depth of Cut, 3/8 in Inscribed Circle, 0.1874 in Thickness, 0.6495 in Length, SF Chipbreaker, 0.0468 in Corner Radius, 0.15 in Hole Dia, Manufacturer's Grade: 1125, ANSI Code: TNMG 333-SF 1125, ISO Code: TNMG 16 04 12-SF 1125, 60 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, PVD Coated, Material Grade: S
Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, TNMG Insert, T-Triangle, 2 mm Maximum Depth of Cut, 3/8 in Inscribed Circle, 0.1874 in Thickness, 0.6495 in Length, SF Chipbreaker, 0.0468 in Corner Radius, 0.15 in Hole Dia, Manufacturer's Grade: 1125, ANSI Code: TNMG 333-SF 1125, ISO Code: TNMG 16 04 12-SF 1125, 60 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, PVD Coated, Material Grade: S
Alternate Catalog Number TNMG 333-SF 1125 ANSI Code TNMG 333-SF 1125 Catalog Number 6066642 Corner Radius 0.0468 in Country of Origin SE Finish PVD-TiAlN+AlCr2O3 Coated Gross Weight Per Pack 0.1700 lb Hole Diameter 0.15 in Included Angle 60 ° ISO Code TNMG 16 04 12-SF 1125 Item Group 110 Length 0.649 in Relief Angle 0 ° Series T-Max® P Thickness 0.187 in Type Basic Shape UPC 11 69826256222 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker SF Cutting Direction Neutral For Use On Heat Resistant Super Alloys Inscribed Circle 3/8 in Insert Size 333 Insert Style TNMG Manufacturer's Grade 1125 Material Carbide Material Grade S Maximum Depth of Cut 0.079 in Rake Negative Seat Size 16 Shape Triangle Straight hole and non-flat surface clamping interface 2-side cutting +/-0.13 mm THK and +/-0.05 mm inscribed circle tolerance ER treated cutting edge Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials For external turning operations and internal machining 0.12 - 0.3 mm/r cutting feed 20 life cycle state
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | TNMG 333-SF 1125 |
| ANSI Code | TNMG 333-SF 1125 |
| Catalog Number | 6066642 |
| Corner Radius | 0.0468 in |
| Country of Origin | SE |
| Finish | PVD-TiAlN+AlCr2O3 Coated |
| Gross Weight Per Pack | 0.1700 lb |
| Hole Diameter | 0.15 in |
| Included Angle | 60 ° |
| ISO Code | TNMG 16 04 12-SF 1125 |
| Item Group | 110 |
| Length | 0.649 in |
| Relief Angle | 0 ° |
| Series | T-Max® P |
| Thickness | 0.187 in |
| Type | Basic Shape |
| UPC 11 | 69826256222 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | SF |
| Cutting Direction | Neutral |
| For Use On | Heat Resistant Super Alloys |
| Inscribed Circle | 3/8 in |
| Insert Size | 333 |
| Insert Style | TNMG |
| Manufacturer's Grade | 1125 |
| Material | Carbide |
| Material Grade | S |
| Maximum Depth of Cut | 0.079 in |
| Rake | Negative |
| Seat Size | 16 |
| Shape | Triangle |
| Straight hole and non-flat surface clamping interface |
| 2-side cutting |
| +/-0.13 mm THK and +/-0.05 mm inscribed circle tolerance |
| ER treated cutting edge |
| Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials |
| For external turning operations and internal machining |
| 0.12 - 0.3 mm/r cutting feed |
| 20 life cycle state |
