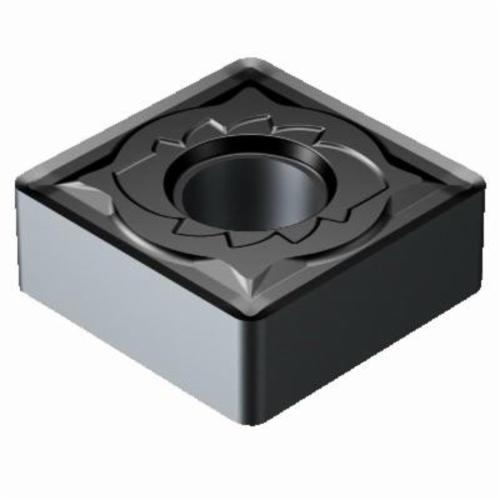

Sandvik Coromant 6066635 T-Max® P Negative Basic Shape Turning Insert, SNMG 643-SMR 1105, S-Square, SNMG Insert, 1105
Custom_Product_Images_Illustration
Sandvik Coromant 6066635 T-Max® P Negative Basic Shape Turning Insert, SNMG 643-SMR 1105, S-Square, SNMG Insert, 1105
SKU1239724
MFGR #6066635
Your Cost: $41.21/ea
List: Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, SNMG Insert, S-Square, 9 mm Maximum Depth of Cut, 3/4 in Inscribed Circle, 1/4 in Thickness, 3/4 in Length, SMR Chipbreaker, 0.0468 in Corner Radius, 0.312 in Hole Dia, Manufacturer's Grade: 1105, ANSI Code: SNMG 643-SMR 1105, ISO Code: SNMG 19 06 12-SMR 1105, 90 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, PVD Coated, Material Grade: S
Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, SNMG Insert, S-Square, 9 mm Maximum Depth of Cut, 3/4 in Inscribed Circle, 1/4 in Thickness, 3/4 in Length, SMR Chipbreaker, 0.0468 in Corner Radius, 0.312 in Hole Dia, Manufacturer's Grade: 1105, ANSI Code: SNMG 643-SMR 1105, ISO Code: SNMG 19 06 12-SMR 1105, 90 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, PVD Coated, Material Grade: S
Alternate Catalog Number SNMG 643-SMR 1105 ANSI Code SNMG 643-SMR 1105 Catalog Number 6066635 Corner Radius 0.0468 in Country of Origin SE Finish PVD-TiAlN2 Coated Gross Weight Per Pack 0.7100 lb Hole Diameter 0.312 in Included Angle 90 ° ISO Code SNMG 19 06 12-SMR 1105 Item Group 110 Length 3/4 in Relief Angle 0 ° Series T-Max® P Thickness 1/4 in UPC 11 69826256215 Width 3/4 in Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker SMR Cutting Direction Neutral For Use On Stainless Steel, Heat Resistant Super Alloys and Titanium Inscribed Circle 3/4 in Insert Size 643 Insert Style SNMG Manufacturer's Grade 1105 Material Carbide Material Grade M, S Maximum Depth of Cut 9 mm Rake Negative Seat Size 19 Shape Square Straight hole and non-flat surface clamping interface 2-side cutting +/-0.13 mm THK and +/-0.10 mm inscribed circle tolerance ER treated cutting edge Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials For external turning operations and internal machining 0.25 - 0.42 mm/r cutting feed 20 life cycle state
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | SNMG 643-SMR 1105 |
| ANSI Code | SNMG 643-SMR 1105 |
| Catalog Number | 6066635 |
| Corner Radius | 0.0468 in |
| Country of Origin | SE |
| Finish | PVD-TiAlN2 Coated |
| Gross Weight Per Pack | 0.7100 lb |
| Hole Diameter | 0.312 in |
| Included Angle | 90 ° |
| ISO Code | SNMG 19 06 12-SMR 1105 |
| Item Group | 110 |
| Length | 3/4 in |
| Relief Angle | 0 ° |
| Series | T-Max® P |
| Thickness | 1/4 in |
| UPC 11 | 69826256215 |
| Width | 3/4 in |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | SMR |
| Cutting Direction | Neutral |
| For Use On | Stainless Steel, Heat Resistant Super Alloys and Titanium |
| Inscribed Circle | 3/4 in |
| Insert Size | 643 |
| Insert Style | SNMG |
| Manufacturer's Grade | 1105 |
| Material | Carbide |
| Material Grade | M, S |
| Maximum Depth of Cut | 9 mm |
| Rake | Negative |
| Seat Size | 19 |
| Shape | Square |
| Straight hole and non-flat surface clamping interface |
| 2-side cutting |
| +/-0.13 mm THK and +/-0.10 mm inscribed circle tolerance |
| ER treated cutting edge |
| Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials |
| For external turning operations and internal machining |
| 0.25 - 0.42 mm/r cutting feed |
| 20 life cycle state |
