Sandvik Coromant

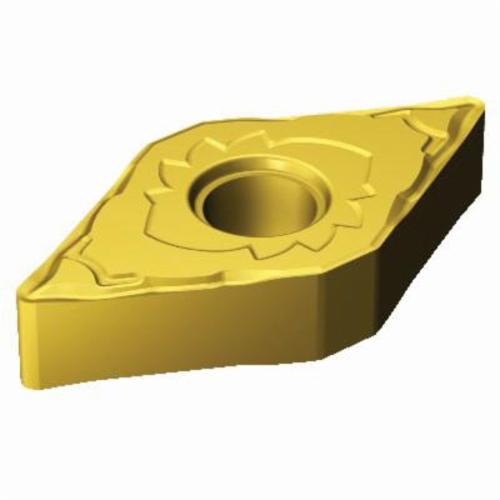

Sandvik Coromant 6066624 T-Max® P Negative Basic Shape Turning Insert, DNMG 332-SF S05F, D-55 deg Diamond, DNMG Insert
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 6066624 T-Max® P Negative Basic Shape Turning Insert, DNMG 332-SF S05F, D-55 deg Diamond, DNMG Insert
SKU1235435
MFGR #6066624
Your Cost: $15.89/ea
List: Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, DNMG Insert, D-55 deg Diamond, 1.5 mm Maximum Depth of Cut, 3/8 in Inscribed Circle, 0.1874 in Thickness, 0.4577 in Length, SF Chipbreaker, 0.0312 in Corner Radius, 0.15 in Hole Dia, Manufacturer's Grade: S05F, ANSI Code: DNMG 332-SF S05F, ISO Code: DNMG 11 04 08-SF S05F, 55 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: S
Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, DNMG Insert, D-55 deg Diamond, 1.5 mm Maximum Depth of Cut, 3/8 in Inscribed Circle, 0.1874 in Thickness, 0.4577 in Length, SF Chipbreaker, 0.0312 in Corner Radius, 0.15 in Hole Dia, Manufacturer's Grade: S05F, ANSI Code: DNMG 332-SF S05F, ISO Code: DNMG 11 04 08-SF S05F, 55 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: S
ANSI Code DNMG 332-SF S05F Catalog Number 6066624 Corner Radius 0.0312 in Country of Origin SE Finish CVD-TiCN+Al2O3+TiN Coated Gross Weight Per Pack 0.1800 lb Hole Diameter 0.15 in Included Angle 55 ° ISO Code DNMG 11 04 08-SF S05F Relief Angle 0 ° Series T-Max® P Thickness 0.1874 in UPC 11 69826256108 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker SF Cutting Direction Neutral For Use On Heat Resistant Super Alloys Inscribed Circle 3/8 in Insert Size 332 Insert Style DNMG Manufacturer's Grade S05F Material Carbide Material Grade S Maximum Depth of Cut 0.059 in Rake Negative Seat Size 11 Shape Rhombic Straight hole and non-flat surface clamping interface 2-side cutting +/-0.13 mm THK and +/-0.05 mm inscribed circle tolerance ER treated cutting edge Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials For external turning operations and internal machining 0.1 - 0.25 mm/r cutting feed 30 life cycle state
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ANSI Code | DNMG 332-SF S05F |
| Catalog Number | 6066624 |
| Corner Radius | 0.0312 in |
| Country of Origin | SE |
| Finish | CVD-TiCN+Al2O3+TiN Coated |
| Gross Weight Per Pack | 0.1800 lb |
| Hole Diameter | 0.15 in |
| Included Angle | 55 ° |
| ISO Code | DNMG 11 04 08-SF S05F |
| Relief Angle | 0 ° |
| Series | T-Max® P |
| Thickness | 0.1874 in |
| UPC 11 | 69826256108 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | SF |
| Cutting Direction | Neutral |
| For Use On | Heat Resistant Super Alloys |
| Inscribed Circle | 3/8 in |
| Insert Size | 332 |
| Insert Style | DNMG |
| Manufacturer's Grade | S05F |
| Material | Carbide |
| Material Grade | S |
| Maximum Depth of Cut | 0.059 in |
| Rake | Negative |
| Seat Size | 11 |
| Shape | Rhombic |
| Straight hole and non-flat surface clamping interface |
| 2-side cutting |
| +/-0.13 mm THK and +/-0.05 mm inscribed circle tolerance |
| ER treated cutting edge |
| Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials |
| For external turning operations and internal machining |
| 0.1 - 0.25 mm/r cutting feed |
| 30 life cycle state |
