Sandvik Coromant

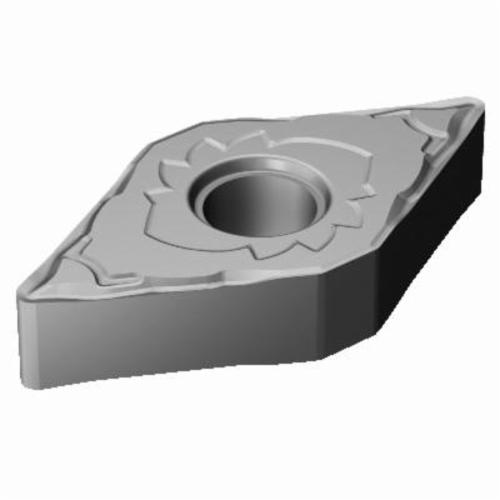

Sandvik Coromant 6066623 T-Max® P Negative Basic Shape Turning Insert, DNMG 332-SF H13A, D-55 deg Diamond, DNMG Insert
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 6066623 T-Max® P Negative Basic Shape Turning Insert, DNMG 332-SF H13A, D-55 deg Diamond, DNMG Insert
SKU1235437
MFGR #6066623
Your Cost: $13.52/ea
List: Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, DNMG Insert, D-55 deg Diamond, 1.5 mm Maximum Depth of Cut, 3/8 in Inscribed Circle, 0.1874 in Thickness, 0.4577 in Length, SF Chipbreaker, 0.0312 in Corner Radius, 0.15 in Hole Dia, Manufacturer's Grade: H13A, ANSI Code: DNMG 332-SF H13A, ISO Code: DNMG 11 04 08-SF H13A, 55 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, Uncoated, Material Grade: S
Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, DNMG Insert, D-55 deg Diamond, 1.5 mm Maximum Depth of Cut, 3/8 in Inscribed Circle, 0.1874 in Thickness, 0.4577 in Length, SF Chipbreaker, 0.0312 in Corner Radius, 0.15 in Hole Dia, Manufacturer's Grade: H13A, ANSI Code: DNMG 332-SF H13A, ISO Code: DNMG 11 04 08-SF H13A, 55 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, Uncoated, Material Grade: S
Alternate Catalog Number DNMG 332-SF H13A ANSI Code DNMG 332-SF H13A Catalog Number 6066623 Corner Radius 0.0312 in Country of Origin SE Finish Uncoated Gross Weight Per Pack 0.1800 lb Hole Diameter 0.15 in Included Angle 55 ° ISO Code DNMG 11 04 08-SF H13A Item Group 110 Relief Angle 0 ° Series T-Max® P Thickness 0.1874 in UPC 11 69826256107 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker SF Cutting Direction Neutral For Use On Stainless Steel, Heat Resistant Super Alloys and Titanium Inscribed Circle 3/8 in Insert Size 332 Insert Style DNMG Manufacturer's Grade H13A Material Carbide Material Grade M, S Maximum Depth of Cut 0.059 in Rake Negative Seat Size 11 Shape Rhombic Straight hole and non-flat surface clamping interface 2-side cutting +/-0.13 mm THK and +/-0.05 mm inscribed circle tolerance ER treated cutting edge Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials For external turning operations and internal machining 0.1 - 0.25 mm/r cutting feed 20 life cycle state
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | DNMG 332-SF H13A |
| ANSI Code | DNMG 332-SF H13A |
| Catalog Number | 6066623 |
| Corner Radius | 0.0312 in |
| Country of Origin | SE |
| Finish | Uncoated |
| Gross Weight Per Pack | 0.1800 lb |
| Hole Diameter | 0.15 in |
| Included Angle | 55 ° |
| ISO Code | DNMG 11 04 08-SF H13A |
| Item Group | 110 |
| Relief Angle | 0 ° |
| Series | T-Max® P |
| Thickness | 0.1874 in |
| UPC 11 | 69826256107 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | SF |
| Cutting Direction | Neutral |
| For Use On | Stainless Steel, Heat Resistant Super Alloys and Titanium |
| Inscribed Circle | 3/8 in |
| Insert Size | 332 |
| Insert Style | DNMG |
| Manufacturer's Grade | H13A |
| Material | Carbide |
| Material Grade | M, S |
| Maximum Depth of Cut | 0.059 in |
| Rake | Negative |
| Seat Size | 11 |
| Shape | Rhombic |
| Straight hole and non-flat surface clamping interface |
| 2-side cutting |
| +/-0.13 mm THK and +/-0.05 mm inscribed circle tolerance |
| ER treated cutting edge |
| Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials |
| For external turning operations and internal machining |
| 0.1 - 0.25 mm/r cutting feed |
| 20 life cycle state |
