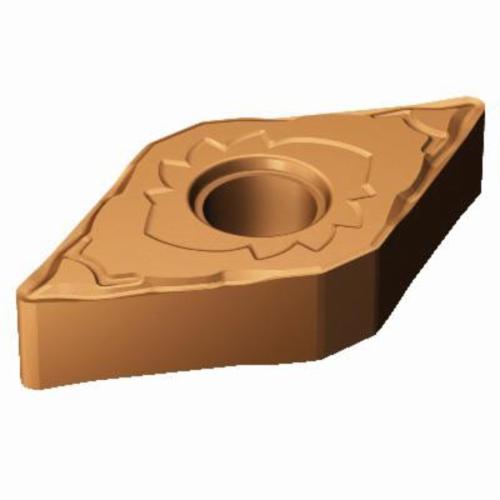

Sandvik Coromant 6066617 T-Max® P Negative Basic Shape Turning Insert, DNMG 331-SF 1125, D-55 deg Diamond, DNMG Insert, 1125
Custom_Product_Images_Illustration
Sandvik Coromant 6066617 T-Max® P Negative Basic Shape Turning Insert, DNMG 331-SF 1125, D-55 deg Diamond, DNMG Insert, 1125
SKU1228289
MFGR #6066617
Your Cost: $17.69/ea
List: Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, DNMG Insert, D-55 deg Diamond, 1.5 mm Maximum Depth of Cut, 3/8 in Inscribed Circle, 0.1874 in Thickness, 0.4577 in Length, SF Chipbreaker, 0.0156 in Corner Radius, 0.15 in Hole Dia, Manufacturer's Grade: 1125, ANSI Code: DNMG 331-SF 1125, ISO Code: DNMG 11 04 04-SF 1125, 55 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, PVD Coated, Material Grade: S
Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, DNMG Insert, D-55 deg Diamond, 1.5 mm Maximum Depth of Cut, 3/8 in Inscribed Circle, 0.1874 in Thickness, 0.4577 in Length, SF Chipbreaker, 0.0156 in Corner Radius, 0.15 in Hole Dia, Manufacturer's Grade: 1125, ANSI Code: DNMG 331-SF 1125, ISO Code: DNMG 11 04 04-SF 1125, 55 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, PVD Coated, Material Grade: S
Alternate Catalog Number DNMG 331-SF 1125 ANSI Code DNMG 331-SF 1125 Catalog Number 6066617 Corner Radius 0.0156 in Country of Origin SE Finish PVD Coated Gross Weight Per Pack 0.0200 lb Hand of Insert Neutral Hole Diameter 0.15 in Included Angle 55 deg ISO Code DNMG 11 04 04-SF 1125 Item Group 110 Length 0.4577 in Relief Angle 0 deg Series T-Max® P Thickness 0.1874 in Type Negative Basic Shape UPC 11 69826256106 Width SF Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker SF Cutting Direction Neutral For Use On Stainless Steel, Heat Resistant Super Alloys and Titanium Inscribed Circle 3/8 in Insert Size D - 55 deg Diamond Insert Style DNMG Manufacturer's Grade 1125 Material Carbide Material Grade S Maximum Depth of Cut 1.5 mm Rake Negative Seat Size 11 Shape D-55 deg Diamond Straight hole and non-flat surface clamping interface 2-side cutting +/-0.13 mm THK and +/-0.05 mm inscribed circle tolerance ER treated cutting edge Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials For external turning operations and internal machining 0.08 - 0.22 mm/r cutting feed 20 life cycle state
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | DNMG 331-SF 1125 |
| ANSI Code | DNMG 331-SF 1125 |
| Catalog Number | 6066617 |
| Corner Radius | 0.0156 in |
| Country of Origin | SE |
| Finish | PVD Coated |
| Gross Weight Per Pack | 0.0200 lb |
| Hand of Insert | Neutral |
| Hole Diameter | 0.15 in |
| Included Angle | 55 deg |
| ISO Code | DNMG 11 04 04-SF 1125 |
| Item Group | 110 |
| Length | 0.4577 in |
| Relief Angle | 0 deg |
| Series | T-Max® P |
| Thickness | 0.1874 in |
| Type | Negative Basic Shape |
| UPC 11 | 69826256106 |
| Width | SF |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | SF |
| Cutting Direction | Neutral |
| For Use On | Stainless Steel, Heat Resistant Super Alloys and Titanium |
| Inscribed Circle | 3/8 in |
| Insert Size | D - 55 deg Diamond |
| Insert Style | DNMG |
| Manufacturer's Grade | 1125 |
| Material | Carbide |
| Material Grade | S |
| Maximum Depth of Cut | 1.5 mm |
| Rake | Negative |
| Seat Size | 11 |
| Shape | D-55 deg Diamond |
| Straight hole and non-flat surface clamping interface |
| 2-side cutting |
| +/-0.13 mm THK and +/-0.05 mm inscribed circle tolerance |
| ER treated cutting edge |
| Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials |
| For external turning operations and internal machining |
| 0.08 - 0.22 mm/r cutting feed |
| 20 life cycle state |
