Sandvik Coromant

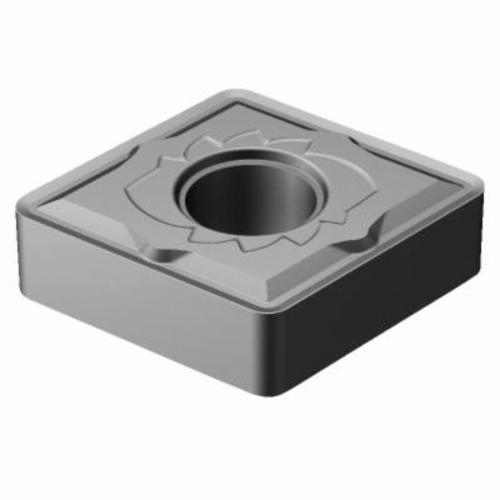

Sandvik Coromant 6066608 T-Max® P Negative Basic Shape Turning Insert, CNMG 643-SM H13A, C-80 deg Diamond, CNMG Insert
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 6066608 T-Max® P Negative Basic Shape Turning Insert, CNMG 643-SM H13A, C-80 deg Diamond, CNMG Insert
SKU1242547
MFGR #6066608
Your Cost: $28.33/ea
List: Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, CNMG Insert, C-80 deg Diamond, 9 mm Maximum Depth of Cut, 3/4 in Inscribed Circle, 1/4 in Thickness, 0.7615 in Length, SM Chipbreaker, 0.0468 in Corner Radius, 0.312 in Hole Dia, Manufacturer's Grade: H13A, ANSI Code: CNMG 643-SM H13A, ISO Code: CNMG 19 06 12-SM H13A, 80 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, Uncoated, Material Grade: S
Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, CNMG Insert, C-80 deg Diamond, 9 mm Maximum Depth of Cut, 3/4 in Inscribed Circle, 1/4 in Thickness, 0.7615 in Length, SM Chipbreaker, 0.0468 in Corner Radius, 0.312 in Hole Dia, Manufacturer's Grade: H13A, ANSI Code: CNMG 643-SM H13A, ISO Code: CNMG 19 06 12-SM H13A, 80 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, Uncoated, Material Grade: S
Alternate Catalog Number CNMG 643-SM H13A ANSI Code CNMG 643-SM H13A Catalog Number 6066608 Corner Radius 0.047 in Country of Origin SE Finish Uncoated Gross Weight Per Pack 0.7100 lb Hole Diameter 0.312 in Included Angle 80 ° ISO Code CNMG 19 06 12-SM H13A Item Group 110 Relief Angle 0 ° Series T-Max® P Thickness 1/4 in UPC 11 69826255739 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker SM Cutting Direction Neutral For Use On Stainless Steel, Heat Resistant Super Alloys and Titanium Inscribed Circle 3/4 in Insert Size 643 Insert Style CNMG Manufacturer's Grade H13A Material Carbide Material Grade M, S Maximum Depth of Cut 0.354 in Rake Negative Seat Size 19 Shape Rhombic Straight hole and non-flat surface clamping interface 20 life cycle state 2-side cutting +/-0.13 mm THK and +/-0.10 mm inscribed circle tolerance ER treated cutting edge Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials For external turning operations and internal machining 0.2 - 0.65 mm/r cutting feed
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | CNMG 643-SM H13A |
| ANSI Code | CNMG 643-SM H13A |
| Catalog Number | 6066608 |
| Corner Radius | 0.047 in |
| Country of Origin | SE |
| Finish | Uncoated |
| Gross Weight Per Pack | 0.7100 lb |
| Hole Diameter | 0.312 in |
| Included Angle | 80 ° |
| ISO Code | CNMG 19 06 12-SM H13A |
| Item Group | 110 |
| Relief Angle | 0 ° |
| Series | T-Max® P |
| Thickness | 1/4 in |
| UPC 11 | 69826255739 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | SM |
| Cutting Direction | Neutral |
| For Use On | Stainless Steel, Heat Resistant Super Alloys and Titanium |
| Inscribed Circle | 3/4 in |
| Insert Size | 643 |
| Insert Style | CNMG |
| Manufacturer's Grade | H13A |
| Material | Carbide |
| Material Grade | M, S |
| Maximum Depth of Cut | 0.354 in |
| Rake | Negative |
| Seat Size | 19 |
| Shape | Rhombic |
| Straight hole and non-flat surface clamping interface |
| 20 life cycle state |
| 2-side cutting |
| +/-0.13 mm THK and +/-0.10 mm inscribed circle tolerance |
| ER treated cutting edge |
| Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials |
| For external turning operations and internal machining |
| 0.2 - 0.65 mm/r cutting feed |
