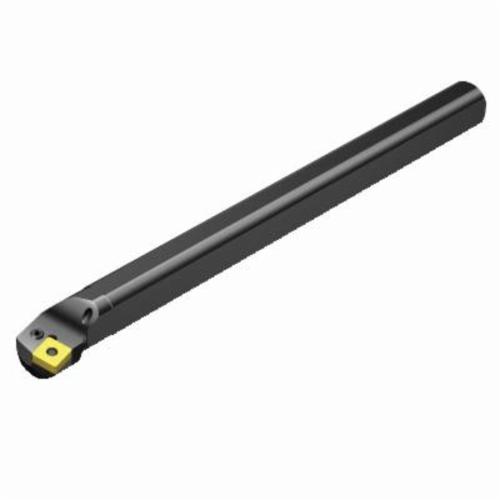

Sandvik Coromant 6056853 T-Max® P Indexable Boring Bar, 2.4803 in Min, 13.7795 in OAL, Right Hand
Custom_Product_Images_Illustration
Sandvik Coromant 6056853 T-Max® P Indexable Boring Bar, 2.4803 in Min, 13.7795 in OAL, Right Hand
SKU1249452
MFGR #6056853
Your Cost: $523.01/ea
Sandvik Coromant Indexable Boring Bar, Series: T-Max® P, 2.4803 in Minimum Bore Dia, 7.874 in Maximum Bore Depth, 13.7795 in Overall Length, 1.9685 in Shank Dia, Cylindrical With 3-Flats Shank, Right Hand Cutting, Insert Compatibility: SNMG 19 06 12 (MIIDM), SNMG 643 (MIIDN), Square Insert, 1.3779 in Width Offset, Steel
Sandvik Coromant Indexable Boring Bar, Series: T-Max® P, 2.4803 in Minimum Bore Dia, 7.874 in Maximum Bore Depth, 13.7795 in Overall Length, 1.9685 in Shank Dia, Cylindrical With 3-Flats Shank, Right Hand Cutting, Insert Compatibility: SNMG 19 06 12 (MIIDM), SNMG 643 (MIIDN), Square Insert, 1.3779 in Width Offset, Steel
Catalog Number 6056853 Country of Origin US Cutting Direction Right Hand Finish Indexable Gross Weight Per Pack 10.3400 lb Inscribed Circle 3/4 Insert Screw 35 mm Insert Thickness T-Max® P Maximum Bore Diameter 200 mm Overall Length 13.7795 in Series T-Max® P Shank Type Cylindrical with 3-Flats Toolholder Type A..PSKNR UPC 11 69826264051 Width Offset 1.3779 in Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Hand of Holder Right Insert Compatibility SNMG 19 06 12 (MIIDM), SNMG 643 (MIIDN) Insert Shape Square Material Steel Maximum Bore Depth 7.874 in Minimum Bore Diameter 2.4803 in Shank Diameter 1.9685 in Type Indexable 0 deg body machine side 0 deg body workpiece side Axial concentric coolant entry Axial inclined coolant exit 47 mm H shank -6 deg orthogonal rake 145.038 lbf/sq-in coolant pressure 75 deg cutting edge -9 deg inclination 20 life cycle state Coolant through 15 deg lead 0 deg maximum ramping 10 Nm torque Lever hole clamping 3/4 in insert seat ANSI Code: A50U-PSKNR 19 ISO Code: A50U-PSKNR 19
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Catalog Number | 6056853 |
| Country of Origin | US |
| Cutting Direction | Right Hand |
| Finish | Indexable |
| Gross Weight Per Pack | 10.3400 lb |
| Inscribed Circle | 3/4 |
| Insert Screw | 35 mm |
| Insert Thickness | T-Max® P |
| Maximum Bore Diameter | 200 mm |
| Overall Length | 13.7795 in |
| Series | T-Max® P |
| Shank Type | Cylindrical with 3-Flats |
| Toolholder Type | A..PSKNR |
| UPC 11 | 69826264051 |
| Width Offset | 1.3779 in |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Hand of Holder | Right |
| Insert Compatibility | SNMG 19 06 12 (MIIDM), SNMG 643 (MIIDN) |
| Insert Shape | Square |
| Material | Steel |
| Maximum Bore Depth | 7.874 in |
| Minimum Bore Diameter | 2.4803 in |
| Shank Diameter | 1.9685 in |
| Type | Indexable |
| 0 deg body machine side |
| 0 deg body workpiece side |
| Axial concentric coolant entry |
| Axial inclined coolant exit |
| 47 mm H shank |
| -6 deg orthogonal rake |
| 145.038 lbf/sq-in coolant pressure |
| 75 deg cutting edge |
| -9 deg inclination |
| 20 life cycle state |
| Coolant through |
| 15 deg lead |
| 0 deg maximum ramping |
| 10 Nm torque |
| Lever hole clamping |
| 3/4 in insert seat |
| ANSI Code: A50U-PSKNR 19 |
| ISO Code: A50U-PSKNR 19 |
