Sandvik Coromant

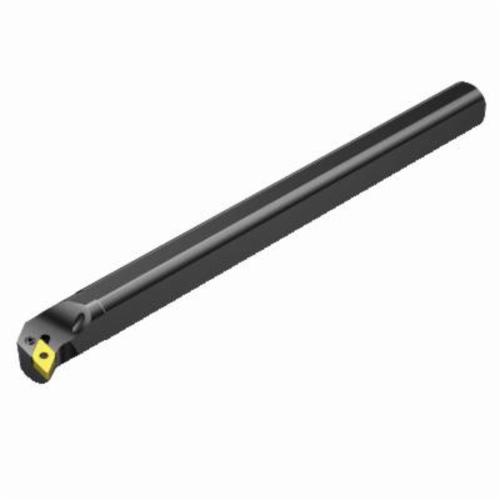

Sandvik Coromant 6056851 T-Max® P Indexable Boring Bar, 2.4803 in Min, 13.7795 in OAL, Right Hand
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 6056851 T-Max® P Indexable Boring Bar, 2.4803 in Min, 13.7795 in OAL, Right Hand
SKU1249454
MFGR #6056851
Your Cost: $769.16/ea
Sandvik Coromant Indexable Boring Bar, Series: T-Max® P, 2.4803 in Minimum Bore Dia, 7.874 in Maximum Bore Depth, 13.7795 in Overall Length, 1.9685 in Shank Dia, Cylindrical With 3-Flats Shank, Right Hand Cutting, Insert Compatibility: DNMG 15 06 08 (MIIDM), DNMG 442 (MIIDN), D-55 deg Diamond Insert, 1.3779 in Width Offset, Steel
Sandvik Coromant Indexable Boring Bar, Series: T-Max® P, 2.4803 in Minimum Bore Dia, 7.874 in Maximum Bore Depth, 13.7795 in Overall Length, 1.9685 in Shank Dia, Cylindrical With 3-Flats Shank, Right Hand Cutting, Insert Compatibility: DNMG 15 06 08 (MIIDM), DNMG 442 (MIIDN), D-55 deg Diamond Insert, 1.3779 in Width Offset, Steel
Alternate Catalog Number A50U-PDUNR 15 Catalog Number 6056851 Country of Origin US Cutting Direction Right Hand Finish Indexable Gross Weight Per Pack 10.3200 lb Insert Screw 350 mm Insert Thickness T-Max® P Item Group 210 Maximum Bore Diameter 200 mm Overall Length 13.7795 in Series T-Max® P Shank Type Cylindrical With 3-Flats UPC 11 69826264049 Width Offset 1.3779 in Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Insert Compatibility DNMG 15 06 08 (MIIDM), DNMG 442 (MIIDN) Insert Shape D-55 deg Diamond Material Steel Maximum Bore Depth 7.874 in Minimum Bore Diameter 2.4803 in Shank Diameter 1.9685 in Type Indexable 0 deg body machine side 0 deg body workpiece side Axial concentric coolant entry Axial inclined coolant exit 47 mm H shank -6 deg orthogonal rake 145.038 lbf/sq-in coolant pressure 93 deg cutting edge -10 deg inclination 20 life cycle state Coolant through -3 deg lead 27 deg maximum ramping 5 Nm torque Lever hole clamping 1/2 in insert seat ANSI Code: A50U-PDUNR 15 ISO Code: A50U-PDUNR 15
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | A50U-PDUNR 15 |
| Catalog Number | 6056851 |
| Country of Origin | US |
| Cutting Direction | Right Hand |
| Finish | Indexable |
| Gross Weight Per Pack | 10.3200 lb |
| Insert Screw | 350 mm |
| Insert Thickness | T-Max® P |
| Item Group | 210 |
| Maximum Bore Diameter | 200 mm |
| Overall Length | 13.7795 in |
| Series | T-Max® P |
| Shank Type | Cylindrical With 3-Flats |
| UPC 11 | 69826264049 |
| Width Offset | 1.3779 in |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Insert Compatibility | DNMG 15 06 08 (MIIDM), DNMG 442 (MIIDN) |
| Insert Shape | D-55 deg Diamond |
| Material | Steel |
| Maximum Bore Depth | 7.874 in |
| Minimum Bore Diameter | 2.4803 in |
| Shank Diameter | 1.9685 in |
| Type | Indexable |
| 0 deg body machine side |
| 0 deg body workpiece side |
| Axial concentric coolant entry |
| Axial inclined coolant exit |
| 47 mm H shank |
| -6 deg orthogonal rake |
| 145.038 lbf/sq-in coolant pressure |
| 93 deg cutting edge |
| -10 deg inclination |
| 20 life cycle state |
| Coolant through |
| -3 deg lead |
| 27 deg maximum ramping |
| 5 Nm torque |
| Lever hole clamping |
| 1/2 in insert seat |
| ANSI Code: A50U-PDUNR 15 |
| ISO Code: A50U-PDUNR 15 |
