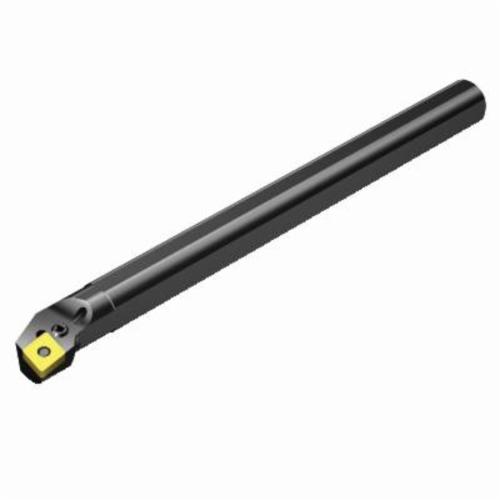

Sandvik Coromant 6056846 T-Max® P Indexable Boring Bar, 2.4803 in Min, 13.7795 in OAL, Left Hand
Custom_Product_Images_Illustration
Sandvik Coromant 6056846 T-Max® P Indexable Boring Bar, 2.4803 in Min, 13.7795 in OAL, Left Hand
SKU1249419
MFGR #6056846
Your Cost: $769.16/ea
Sandvik Coromant Indexable Boring Bar, Series: T-Max® P, 2.4803 in Minimum Bore Dia, 7.874 in Maximum Bore Depth, 13.7795 in Overall Length, 1.9685 in Shank Dia, Cylindrical With 3-Flats Shank, Left Hand Cutting, Insert Compatibility: CNMG 16 06 12 (MIIDM), CNMG 543 (MIIDN), C-80 deg Diamond Insert, 1.3779 in Width Offset, Steel
Sandvik Coromant Indexable Boring Bar, Series: T-Max® P, 2.4803 in Minimum Bore Dia, 7.874 in Maximum Bore Depth, 13.7795 in Overall Length, 1.9685 in Shank Dia, Cylindrical With 3-Flats Shank, Left Hand Cutting, Insert Compatibility: CNMG 16 06 12 (MIIDM), CNMG 543 (MIIDN), C-80 deg Diamond Insert, 1.3779 in Width Offset, Steel
Alternate Catalog Number A50U-PCLNL 16 Catalog Number 6056846 Country of Origin US Cutting Direction Left Hand Finish Indexable Gross Weight Per Pack 10.3400 lb Insert Screw 350 mm Insert Thickness T-Max® P Item Group 210 Maximum Bore Diameter 200 mm Overall Length 13.7795 in Series T-Max® P Shank Type Cylindrical with 3-Flats UPC 11 69826264044 Width Offset 1.3779 in Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Insert Compatibility CNMG 16 06 12 (MIIDM), CNMG 543 (MIIDN) Insert Shape C-80 deg Diamond Material Steel Maximum Bore Depth 7.874 in Minimum Bore Diameter 2.4803 in Shank Diameter 1.9685 in Type Indexable 0 deg body machine side 0 deg body workpiece side Axial concentric coolant entry Axial inclined coolant exit 47 mm H shank -6 deg orthogonal rake 145.038 lbf/sq-in coolant pressure 95 deg cutting edge -11 deg inclination 20 life cycle state Coolant through -5 deg lead 0 deg maximum ramping 5 Nm torque Lever hole clamping 5/8 in insert seat ANSI Code: A50U-PCLNL 16 ISO Code: A50U-PCLNL 16
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | A50U-PCLNL 16 |
| Catalog Number | 6056846 |
| Country of Origin | US |
| Cutting Direction | Left Hand |
| Finish | Indexable |
| Gross Weight Per Pack | 10.3400 lb |
| Insert Screw | 350 mm |
| Insert Thickness | T-Max® P |
| Item Group | 210 |
| Maximum Bore Diameter | 200 mm |
| Overall Length | 13.7795 in |
| Series | T-Max® P |
| Shank Type | Cylindrical with 3-Flats |
| UPC 11 | 69826264044 |
| Width Offset | 1.3779 in |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Insert Compatibility | CNMG 16 06 12 (MIIDM), CNMG 543 (MIIDN) |
| Insert Shape | C-80 deg Diamond |
| Material | Steel |
| Maximum Bore Depth | 7.874 in |
| Minimum Bore Diameter | 2.4803 in |
| Shank Diameter | 1.9685 in |
| Type | Indexable |
| 0 deg body machine side |
| 0 deg body workpiece side |
| Axial concentric coolant entry |
| Axial inclined coolant exit |
| 47 mm H shank |
| -6 deg orthogonal rake |
| 145.038 lbf/sq-in coolant pressure |
| 95 deg cutting edge |
| -11 deg inclination |
| 20 life cycle state |
| Coolant through |
| -5 deg lead |
| 0 deg maximum ramping |
| 5 Nm torque |
| Lever hole clamping |
| 5/8 in insert seat |
| ANSI Code: A50U-PCLNL 16 |
| ISO Code: A50U-PCLNL 16 |
