Sandvik Coromant

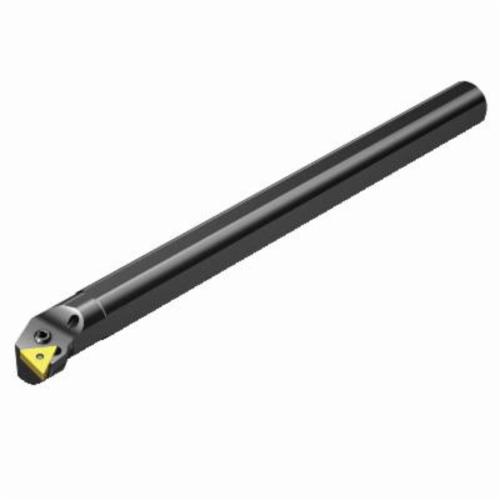

Sandvik Coromant 6056841 T-Max® P Indexable Boring Bar, 1.2598 in Min, 11.811 in OAL, Right Hand
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 6056841 T-Max® P Indexable Boring Bar, 1.2598 in Min, 11.811 in OAL, Right Hand
SKU1247746
MFGR #6056841
Your Cost: $516.21/ea
Sandvik Coromant Indexable Boring Bar, Series: T-Max® P, 1.2598 in Minimum Bore Dia, 3.937 in Maximum Bore Depth, 11.811 in Overall Length, 0.9842 in Shank Dia, Cylindrical With 3-Flats Shank, Right Hand Cutting, Insert Compatibility: TNMG 11 03 04 (MIIDM), TNMG 221 (MIIDN), Triangle Insert, 0.6692 in Width Offset, Steel
Sandvik Coromant Indexable Boring Bar, Series: T-Max® P, 1.2598 in Minimum Bore Dia, 3.937 in Maximum Bore Depth, 11.811 in Overall Length, 0.9842 in Shank Dia, Cylindrical With 3-Flats Shank, Right Hand Cutting, Insert Compatibility: TNMG 11 03 04 (MIIDM), TNMG 221 (MIIDN), Triangle Insert, 0.6692 in Width Offset, Steel
Alternate Catalog Number A25T-PTFNR 11 Catalog Number 6056841 Country of Origin SE Gross Weight Per Pack 2.1100 lb Insert Thickness 1/8 in Item Group 210 Overall Length 11.811 in Series T-Max® P Shank Type Cylindrical With 3-Flats Toolholder Style A..PTFNR UPC 11 69826264031 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Hand of Holder Right Insert Compatibility TNMG 11 03 04 Insert Shape Triangle Material Steel Maximum Bore Depth 3.937 in Minimum Bore Diameter 1.26 in Shank Diameter 0.984 in Through Coolant Yes Stable and secure clamping|Chip control and process security|Excellent surface finish 0 deg body workpiece side Axial concentric coolant entry Axial inclined coolant exit 23 mm H shank -6 deg orthogonal rake 145.038 lbf/sq-in coolant pressure 91 deg cutting edge -10 deg inclination 20 life cycle state Coolant through -1 deg lead 0 deg maximum ramping 1.2 Nm torque Lever hole clamping 1/4 in insert seat ANSI Code: A25T-PTFNR 11 ISO Code: A25T-PTFNR 11
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | A25T-PTFNR 11 |
| Catalog Number | 6056841 |
| Country of Origin | SE |
| Gross Weight Per Pack | 2.1100 lb |
| Insert Thickness | 1/8 in |
| Item Group | 210 |
| Overall Length | 11.811 in |
| Series | T-Max® P |
| Shank Type | Cylindrical With 3-Flats |
| Toolholder Style | A..PTFNR |
| UPC 11 | 69826264031 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Hand of Holder | Right |
| Insert Compatibility | TNMG 11 03 04 |
| Insert Shape | Triangle |
| Material | Steel |
| Maximum Bore Depth | 3.937 in |
| Minimum Bore Diameter | 1.26 in |
| Shank Diameter | 0.984 in |
| Through Coolant | Yes |
| Stable and secure clamping|Chip control and process security|Excellent surface finish |
| 0 deg body workpiece side |
| Axial concentric coolant entry |
| Axial inclined coolant exit |
| 23 mm H shank |
| -6 deg orthogonal rake |
| 145.038 lbf/sq-in coolant pressure |
| 91 deg cutting edge |
| -10 deg inclination |
| 20 life cycle state |
| Coolant through |
| -1 deg lead |
| 0 deg maximum ramping |
| 1.2 Nm torque |
| Lever hole clamping |
| 1/4 in insert seat |
| ANSI Code: A25T-PTFNR 11 |
| ISO Code: A25T-PTFNR 11 |
