Sandvik Coromant

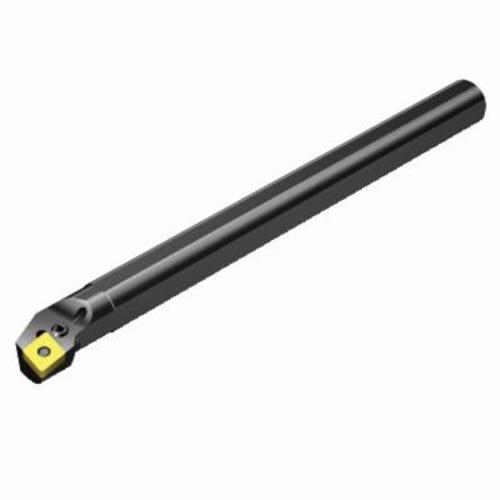

Sandvik Coromant 6056837 T-Max® P Indexable Boring Bar, 1.2598 in Min, 11.811 in OAL, Right Hand
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 6056837 T-Max® P Indexable Boring Bar, 1.2598 in Min, 11.811 in OAL, Right Hand
SKU1247751
MFGR #6056837
Your Cost: $516.21/ea
Sandvik Coromant Indexable Boring Bar, Series: T-Max® P, 1.2598 in Minimum Bore Dia, 3.937 in Maximum Bore Depth, 11.811 in Overall Length, 0.9842 in Shank Dia, Cylindrical With 3-Flats Shank, Right Hand Cutting, Insert Compatibility: CNMG 09 03 08 (MIIDM), CNMG 322 (MIIDN), C-80 deg Diamond Insert, 0.6692 in Width Offset, Steel
Sandvik Coromant Indexable Boring Bar, Series: T-Max® P, 1.2598 in Minimum Bore Dia, 3.937 in Maximum Bore Depth, 11.811 in Overall Length, 0.9842 in Shank Dia, Cylindrical With 3-Flats Shank, Right Hand Cutting, Insert Compatibility: CNMG 09 03 08 (MIIDM), CNMG 322 (MIIDN), C-80 deg Diamond Insert, 0.6692 in Width Offset, Steel
Alternate Catalog Number A25T-PCLNR 09 Catalog Number 6056837 Country of Origin SE Gross Weight Per Pack 2.0900 lb Insert Thickness 1/8 in Item Group 210 Overall Length 11.811 in Series T-Max® P Shank Type Cylindrical with 3-Flats Toolholder Style A..PCLNR UPC 11 69826264027 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Hand of Holder Right Insert Compatibility CNMG 09 03 08 Insert Shape 80 deg Diamond Material Steel Maximum Bore Depth 3.937 in Minimum Bore Diameter 1.26 in Shank Diameter 0.984 in Through Coolant Yes Stable and secure clamping|Chip control and process security|Excellent surface finish 0 deg body workpiece side Axial concentric coolant entry Axial inclined coolant exit 23 mm H shank -6 deg orthogonal rake 145.038 lbf/sq-in coolant pressure 95 deg cutting edge -10 deg inclination 20 life cycle state Coolant through -5 deg lead 0 deg maximum ramping 2 Nm torque Lever hole clamping 3/8 in insert seat ANSI Code: A25T-PCLNR 09 ISO Code: A25T-PCLNR 09
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | A25T-PCLNR 09 |
| Catalog Number | 6056837 |
| Country of Origin | SE |
| Gross Weight Per Pack | 2.0900 lb |
| Insert Thickness | 1/8 in |
| Item Group | 210 |
| Overall Length | 11.811 in |
| Series | T-Max® P |
| Shank Type | Cylindrical with 3-Flats |
| Toolholder Style | A..PCLNR |
| UPC 11 | 69826264027 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Hand of Holder | Right |
| Insert Compatibility | CNMG 09 03 08 |
| Insert Shape | 80 deg Diamond |
| Material | Steel |
| Maximum Bore Depth | 3.937 in |
| Minimum Bore Diameter | 1.26 in |
| Shank Diameter | 0.984 in |
| Through Coolant | Yes |
| Stable and secure clamping|Chip control and process security|Excellent surface finish |
| 0 deg body workpiece side |
| Axial concentric coolant entry |
| Axial inclined coolant exit |
| 23 mm H shank |
| -6 deg orthogonal rake |
| 145.038 lbf/sq-in coolant pressure |
| 95 deg cutting edge |
| -10 deg inclination |
| 20 life cycle state |
| Coolant through |
| -5 deg lead |
| 0 deg maximum ramping |
| 2 Nm torque |
| Lever hole clamping |
| 3/8 in insert seat |
| ANSI Code: A25T-PCLNR 09 |
| ISO Code: A25T-PCLNR 09 |
