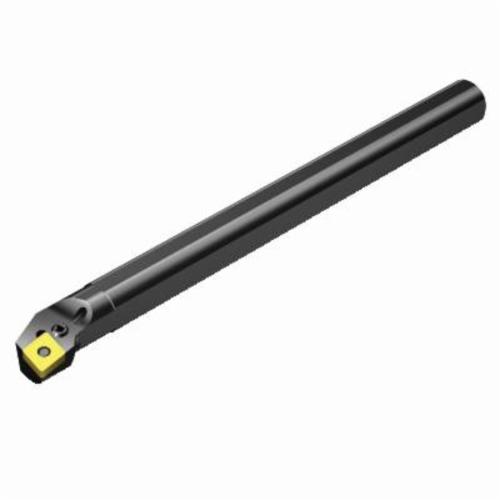

Sandvik Coromant 6056798 T-Max® P Indexable Boring Bar, 0.7874 in Min, 7.874 in OAL, Left Hand
Custom_Product_Images_Illustration
Sandvik Coromant 6056798 T-Max® P Indexable Boring Bar, 0.7874 in Min, 7.874 in OAL, Left Hand
SKU1247799
MFGR #6056798
Your Cost: $441.36/ea
Sandvik Coromant Indexable Boring Bar, Series: T-Max® P, 0.7874 in Minimum Bore Dia, 2.5196 in Maximum Bore Depth, 7.874 in Overall Length, 0.6299 in Shank Dia, Cylindrical With 3-Flats Shank, Left Hand Cutting, Insert Compatibility: CNMG 09 03 08 (MIIDM), CNMG 322 (MIIDN), C-80 deg Diamond Insert, 0.433 in Width Offset, Steel
Sandvik Coromant Indexable Boring Bar, Series: T-Max® P, 0.7874 in Minimum Bore Dia, 2.5196 in Maximum Bore Depth, 7.874 in Overall Length, 0.6299 in Shank Dia, Cylindrical With 3-Flats Shank, Left Hand Cutting, Insert Compatibility: CNMG 09 03 08 (MIIDM), CNMG 322 (MIIDN), C-80 deg Diamond Insert, 0.433 in Width Offset, Steel
Alternate Catalog Number A16R-PCLNL 09 Catalog Number 6056798 Country of Origin SE Gross Weight Per Pack 0.6200 lb Insert Thickness 1/8 in Item Group 210 Overall Length 7.874 in Series T-Max® P Shank Type Cylindrical with 3-Flats Toolholder Style A..PCLNL UPC 11 69826264018 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Hand of Holder Left Insert Compatibility CNMG 09 03 08 Insert Shape 80 deg Diamond Material Steel Maximum Bore Depth 2.52 in Minimum Bore Diameter 0.787 in Shank Diameter 0.63 in Through Coolant Yes Stable and secure clamping|Chip control and process security|Excellent surface finish 0 deg body workpiece side Axial concentric coolant entry Axial inclined coolant exit 15 mm H shank -6 deg orthogonal rake 145.038 lbf/sq-in coolant pressure 95 deg cutting edge -13 deg inclination 20 life cycle state Coolant through -5 deg lead 0 deg maximum ramping 2 Nm torque Lever hole clamping 3/8 in insert seat ANSI Code: A16R-PCLNL 09 ISO Code: A16R-PCLNL 09
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | A16R-PCLNL 09 |
| Catalog Number | 6056798 |
| Country of Origin | SE |
| Gross Weight Per Pack | 0.6200 lb |
| Insert Thickness | 1/8 in |
| Item Group | 210 |
| Overall Length | 7.874 in |
| Series | T-Max® P |
| Shank Type | Cylindrical with 3-Flats |
| Toolholder Style | A..PCLNL |
| UPC 11 | 69826264018 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Hand of Holder | Left |
| Insert Compatibility | CNMG 09 03 08 |
| Insert Shape | 80 deg Diamond |
| Material | Steel |
| Maximum Bore Depth | 2.52 in |
| Minimum Bore Diameter | 0.787 in |
| Shank Diameter | 0.63 in |
| Through Coolant | Yes |
| Stable and secure clamping|Chip control and process security|Excellent surface finish |
| 0 deg body workpiece side |
| Axial concentric coolant entry |
| Axial inclined coolant exit |
| 15 mm H shank |
| -6 deg orthogonal rake |
| 145.038 lbf/sq-in coolant pressure |
| 95 deg cutting edge |
| -13 deg inclination |
| 20 life cycle state |
| Coolant through |
| -5 deg lead |
| 0 deg maximum ramping |
| 2 Nm torque |
| Lever hole clamping |
| 3/8 in insert seat |
| ANSI Code: A16R-PCLNL 09 |
| ISO Code: A16R-PCLNL 09 |
