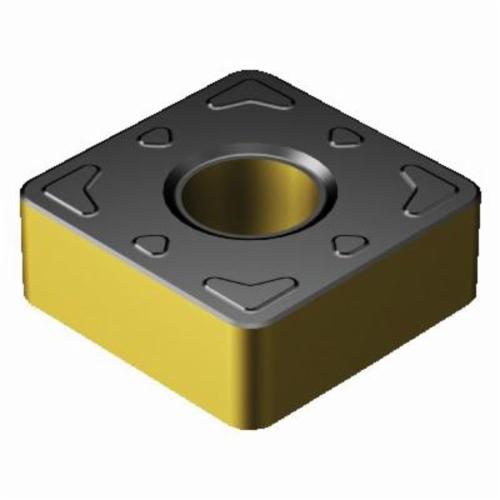

Sandvik Coromant 6042796 T-Max® P Negative Basic Shape Turning Insert, SNMG 434-KRR 3210, S-Square, SNMG Insert, 3210, Carbide
Custom_Product_Images_Illustration
Sandvik Coromant 6042796 T-Max® P Negative Basic Shape Turning Insert, SNMG 434-KRR 3210, S-Square, SNMG Insert, 3210, Carbide
SKU1239370
MFGR #6042796
$/ea
Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, SNMG Insert, S-Square, 8 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 0.1874 in Thickness, 1/2 in Length, KRR Chipbreaker, 0.0624 in Corner Radius, 0.2029 in Hole Dia, Manufacturer's Grade: 3210, ANSI Code: SNMG 434-KRR 3210, ISO Code: SNMG 12 04 16-KRR 3210, 90 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: K
Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, SNMG Insert, S-Square, 8 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 0.1874 in Thickness, 1/2 in Length, KRR Chipbreaker, 0.0624 in Corner Radius, 0.2029 in Hole Dia, Manufacturer's Grade: 3210, ANSI Code: SNMG 434-KRR 3210, ISO Code: SNMG 12 04 16-KRR 3210, 90 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: K
Alternate Catalog Number SNMG 434-KRR 3210 ANSI Code SNMG 434-KRR 3210 Catalog Number 6042796 Corner Radius 0.0624 in Country of Origin SE Finish CVD-TiCN+Al2O3+TiN Coated Gross Weight Per Pack 0.2400 lb Hole Diameter 0.2029 in Included Angle 90 ° ISO Code SNMG 12 04 16-KRR 3210 Item Group 110 Length 1/2 in Relief Angle 0 ° Series T-Max® P Thickness 0.187 in UPC 11 69826264419 Width 1/2 in Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker KRR Cutting Direction Neutral For Use On Cast Iron Inscribed Circle 1/2 in Insert Size 434 Insert Style SNMG Manufacturer's Grade 3210 Material Carbide Material Grade K Maximum Depth of Cut 8 mm Rake Negative Seat Size 12 Shape Square Reliable and secure machining, even in roughing applications Possibility to optimize by using damped Silent Tools™ Excellent surface finish ER treated cutting edge Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials For external turning operations and internal machining 0.2 - 1 mm/r cutting feed 20 life cycle state
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | SNMG 434-KRR 3210 |
| ANSI Code | SNMG 434-KRR 3210 |
| Catalog Number | 6042796 |
| Corner Radius | 0.0624 in |
| Country of Origin | SE |
| Finish | CVD-TiCN+Al2O3+TiN Coated |
| Gross Weight Per Pack | 0.2400 lb |
| Hole Diameter | 0.2029 in |
| Included Angle | 90 ° |
| ISO Code | SNMG 12 04 16-KRR 3210 |
| Item Group | 110 |
| Length | 1/2 in |
| Relief Angle | 0 ° |
| Series | T-Max® P |
| Thickness | 0.187 in |
| UPC 11 | 69826264419 |
| Width | 1/2 in |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | KRR |
| Cutting Direction | Neutral |
| For Use On | Cast Iron |
| Inscribed Circle | 1/2 in |
| Insert Size | 434 |
| Insert Style | SNMG |
| Manufacturer's Grade | 3210 |
| Material | Carbide |
| Material Grade | K |
| Maximum Depth of Cut | 8 mm |
| Rake | Negative |
| Seat Size | 12 |
| Shape | Square |
| Reliable and secure machining, even in roughing applications |
| Possibility to optimize by using damped Silent Tools™ |
| Excellent surface finish |
| ER treated cutting edge |
| Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials |
| For external turning operations and internal machining |
| 0.2 - 1 mm/r cutting feed |
| 20 life cycle state |
