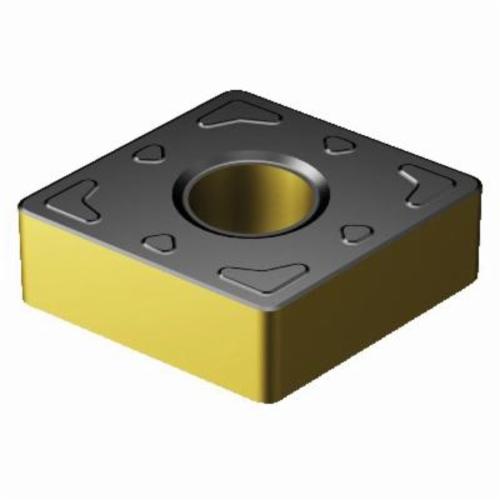

Sandvik Coromant 6042781 T-Max® P Negative Basic Shape Turning Insert, CNMG 543-KRR 3205, C-80 deg Diamond, CNMG Insert
Custom_Product_Images_Illustration
Sandvik Coromant 6042781 T-Max® P Negative Basic Shape Turning Insert, CNMG 543-KRR 3205, C-80 deg Diamond, CNMG Insert
SKU1232053
MFGR #6042781
Your Cost: $23.77/ea
List: Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, CNMG Insert, C-80 deg Diamond, 10 mm Maximum Depth of Cut, 5/8 in Inscribed Circle, 1/4 in Thickness, 0.6346 in Length, KRR Chipbreaker, 0.0468 in Corner Radius, 1/4 in Hole Dia, Manufacturer's Grade: 3205, ANSI Code: CNMG 543-KRR 3205, ISO Code: CNMG 16 06 12-KRR 3205, 80 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: K
Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, CNMG Insert, C-80 deg Diamond, 10 mm Maximum Depth of Cut, 5/8 in Inscribed Circle, 1/4 in Thickness, 0.6346 in Length, KRR Chipbreaker, 0.0468 in Corner Radius, 1/4 in Hole Dia, Manufacturer's Grade: 3205, ANSI Code: CNMG 543-KRR 3205, ISO Code: CNMG 16 06 12-KRR 3205, 80 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: K
ANSI Code CNMG 543-KRR 3205 Catalog Number 6042781 Corner Radius 0.0468 in Country of Origin SE Finish MTCVD Coated Gross Weight Per Pack 0.0400 lb Hand of Insert Neutral Hole Diameter 1/4 in Included Angle 80 deg ISO Code CNMG 16 06 12-KRR 3205 Length 0.6346 in Relief Angle 0 deg Series T-Max® P Thickness 1/4 in Type Negative Basic Shape UPC 11 69826264103 Width KRR Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker KRR Cutting Direction Neutral For Use On Cast Iron Inscribed Circle 5/8 in Insert Size C - 80 deg Diamond Insert Style CNMG Manufacturer's Grade 3205 Material Carbide Material Grade K Maximum Depth of Cut 10 mm Rake Negative Seat Size 16 Shape C-80 deg Diamond Straight hole and non-flat surface clamping interface 20 life cycle state 2-side cutting +/-0.13 mm THK and +/-0.10 mm inscribed circle tolerance ER treated cutting edge Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials For external turning operations and internal machining 0.2 - 0.8 mm/r cutting feed
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ANSI Code | CNMG 543-KRR 3205 |
| Catalog Number | 6042781 |
| Corner Radius | 0.0468 in |
| Country of Origin | SE |
| Finish | MTCVD Coated |
| Gross Weight Per Pack | 0.0400 lb |
| Hand of Insert | Neutral |
| Hole Diameter | 1/4 in |
| Included Angle | 80 deg |
| ISO Code | CNMG 16 06 12-KRR 3205 |
| Length | 0.6346 in |
| Relief Angle | 0 deg |
| Series | T-Max® P |
| Thickness | 1/4 in |
| Type | Negative Basic Shape |
| UPC 11 | 69826264103 |
| Width | KRR |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | KRR |
| Cutting Direction | Neutral |
| For Use On | Cast Iron |
| Inscribed Circle | 5/8 in |
| Insert Size | C - 80 deg Diamond |
| Insert Style | CNMG |
| Manufacturer's Grade | 3205 |
| Material | Carbide |
| Material Grade | K |
| Maximum Depth of Cut | 10 mm |
| Rake | Negative |
| Seat Size | 16 |
| Shape | C-80 deg Diamond |
| Straight hole and non-flat surface clamping interface |
| 20 life cycle state |
| 2-side cutting |
| +/-0.13 mm THK and +/-0.10 mm inscribed circle tolerance |
| ER treated cutting edge |
| Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials |
| For external turning operations and internal machining |
| 0.2 - 0.8 mm/r cutting feed |
