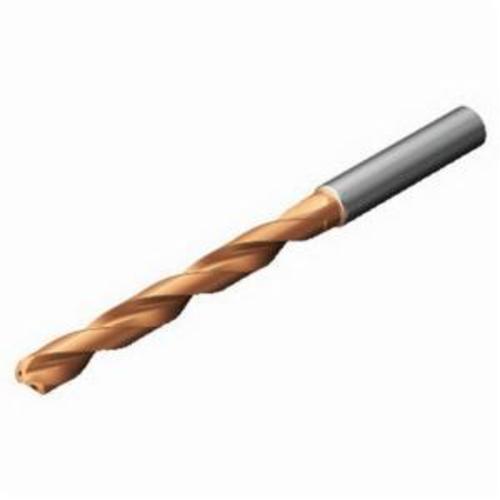

Sandvik Coromant 6040527 CoroDrill® 860 High Performance Screw Machine Drill, 0.2187 in Dia x 3.8189 in L, Solid Carbide
Custom_Product_Images_Illustration
Sandvik Coromant 6040527 CoroDrill® 860 High Performance Screw Machine Drill, 0.2187 in Dia x 3.8189 in L, Solid Carbide
SKU1235905
MFGR #6040527
Your Cost: $289.43/ea
CoroDrill® 860 is a solid carbide drill designed for a fast and problem-free drilling. It maximizes productivity through high metal cutting efficiency and machine utilization. With excellent chip evacuation in long and short chipping materials, CoroDrill 860 provides green light machining at high penetration rates. the CoroDrill 860 product offer consists of three drill geometries - optimized for steel, stainless steel and aluminium. the drill comes in lengths 3 - 8xD as standard. Extended assortment is available as Tailor Made.
CoroDrill® 860 is a solid carbide drill designed for a fast and problem-free drilling. It maximizes productivity through high metal cutting efficiency and machine utilization. With excellent chip evacuation in long and short chipping materials, CoroDrill 860 provides green light machining at high penetration rates. the CoroDrill 860 product offer consists of three drill geometries - optimized for steel, stainless steel and aluminium. the drill comes in lengths 3 - 8xD as standard. Extended assortment is available as Tailor Made.
Alternate Catalog Number 860.1-0556-047A1-PM 4234 Applicable Materials Steel, Stainless Steel and Aluminum Catalog Number 6040527 Country of Origin US Cutting Depth 7-8XD Cutting Direction Right Hand Diameter 0.2187 in Flute Length 2.2834 in Flute Type SSK Gross Weight Per Pack 7.7200 lb Item Group 720 Number of Flutes 2 Point Angle 145 deg Point Type Split Series CoroDrill® 860 Shank Size 0.2362 in Shank Type Cylinder Standards DIN1835-A|DIN6535-HA Type High Performance UPC 11 69826264957 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Finish PVD Coated Material Solid Carbide Overall Length 3.8189 in 4234 manufacturer grade 0 deg body half taper Axial concentric coolant entry on circle 20 bar coolant Axial concentric coolant exit on circle EFW feed direction 19.09 deg orthogonal rake 28.092 deg helix flute 61 mm L body 96.1 mm L functional 36 mm L clamping 45.3 mm L usable 3 maximum regrinds 0.9 mm L point 3 mm L regrind 14323 r/min H6 connection diameter tolerance H8 achievable hole tolerance P material grade 860.1..A1 (8xD) tool style
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | 860.1-0556-047A1-PM 4234 |
| Applicable Materials | Steel, Stainless Steel and Aluminum |
| Catalog Number | 6040527 |
| Country of Origin | US |
| Cutting Depth | 7-8XD |
| Cutting Direction | Right Hand |
| Diameter | 0.2187 in |
| Flute Length | 2.2834 in |
| Flute Type | SSK |
| Gross Weight Per Pack | 7.7200 lb |
| Item Group | 720 |
| Number of Flutes | 2 |
| Point Angle | 145 deg |
| Point Type | Split |
| Series | CoroDrill® 860 |
| Shank Size | 0.2362 in |
| Shank Type | Cylinder |
| Standards | DIN1835-A|DIN6535-HA |
| Type | High Performance |
| UPC 11 | 69826264957 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Finish | PVD Coated |
| Material | Solid Carbide |
| Overall Length | 3.8189 in |
| 4234 manufacturer grade |
| 0 deg body half taper |
| Axial concentric coolant entry on circle |
| 20 bar coolant |
| Axial concentric coolant exit on circle |
| EFW feed direction |
| 19.09 deg orthogonal rake |
| 28.092 deg helix flute |
| 61 mm L body |
| 96.1 mm L functional |
| 36 mm L clamping |
| 45.3 mm L usable |
| 3 maximum regrinds |
| 0.9 mm L point |
| 3 mm L regrind |
| 14323 r/min |
| H6 connection diameter tolerance |
| H8 achievable hole tolerance |
| P material grade |
| 860.1..A1 (8xD) tool style |
