Sandvik Coromant

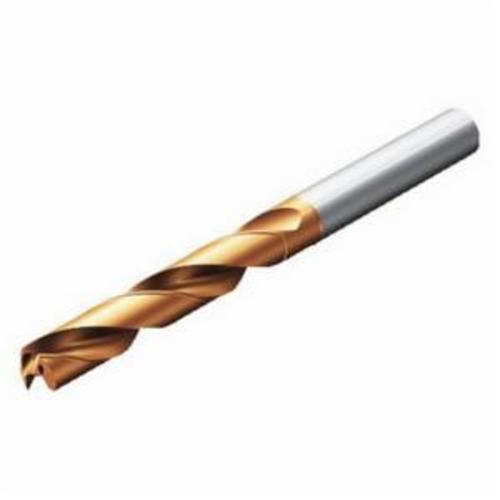

Sandvik Coromant 6040404 CoroDrill® 860 High Performance Screw Machine Drill, 0.3149 in Dia x 3.5826 in L, Solid Carbide, PVD Coated
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 6040404 CoroDrill® 860 High Performance Screw Machine Drill, 0.3149 in Dia x 3.5826 in L, Solid Carbide, PVD Coated
SKU1236257
MFGR #6040404
Your Cost: $216.30/ea
CoroDrill® 860 is a solid carbide drill designed for a fast and problem-free drilling. It maximizes productivity through high metal cutting efficiency and machine utilization. With excellent chip evacuation in long and short chipping materials, CoroDrill 860 provides green light machining at high penetration rates. the CoroDrill 860 product offer consists of three drill geometries - optimized for steel, stainless steel and aluminium. the drill comes in lengths 3 - 8xD as standard. Extended assortment is available as Tailor Made.
CoroDrill® 860 is a solid carbide drill designed for a fast and problem-free drilling. It maximizes productivity through high metal cutting efficiency and machine utilization. With excellent chip evacuation in long and short chipping materials, CoroDrill 860 provides green light machining at high penetration rates. the CoroDrill 860 product offer consists of three drill geometries - optimized for steel, stainless steel and aluminium. the drill comes in lengths 3 - 8xD as standard. Extended assortment is available as Tailor Made.
Alternate Catalog Number 860.1-0800-040A1-PM 4234 Applicable Materials Unalloyed Steel, Low Carbon Steel, Low/High Alloy Steel and Steel castings Catalog Number 6040404 Country of Origin US Cutting Depth 5XD Cutting Direction Right Hand Cutting Edge Material Solid Carbide Diameter 0.315 in Drill Diameter Measurement System Imperial Flute Length 2.087 in Flute Type Spiral Gross Weight Per Pack 0.1300 lb Item Group 720 Number of Flutes 2 Overall Length 3.583 in Point Type Split Series CoroDrill® 860 Shank Size 0.315 in Shank Type Cylindrical Standards DIN 6535 HA/6537 L Through Coolant Yes Type High Performance High Penetration UPC 11 69826256624 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Finish PVD-TiAlN Coated Material Solid Carbide Point Angle 147 ° Flute shape optimizes chip form to improve chip flow and evacuation|Can be reconditioned up to 3 times to its original specification|Broad standard assortment|Customized solutions, supported by tailor made|Single diameter and drill chamfering tools as standard 0 deg body half taper Axial concentric coolant entry on circle 20 bar coolant Axial concentric coolant exit on circle EFW feed direction 20.45 deg orthogonal rake 30.017 deg helix flute 55 mm L body 89.7 mm L functional 36 mm L clamping 41.3 mm L usable 3 maximum regrinds 1.3 mm L point 3 mm L regrind 9947 r/min H6 connection diameter tolerance H8 achievable hole tolerance P material grade 860.1..A1 (5xD) tool style
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | 860.1-0800-040A1-PM 4234 |
| Applicable Materials | Unalloyed Steel, Low Carbon Steel, Low/High Alloy Steel and Steel castings |
| Catalog Number | 6040404 |
| Country of Origin | US |
| Cutting Depth | 5XD |
| Cutting Direction | Right Hand |
| Cutting Edge Material | Solid Carbide |
| Diameter | 0.315 in |
| Drill Diameter Measurement System | Imperial |
| Flute Length | 2.087 in |
| Flute Type | Spiral |
| Gross Weight Per Pack | 0.1300 lb |
| Item Group | 720 |
| Number of Flutes | 2 |
| Overall Length | 3.583 in |
| Point Type | Split |
| Series | CoroDrill® 860 |
| Shank Size | 0.315 in |
| Shank Type | Cylindrical |
| Standards | DIN 6535 HA/6537 L |
| Through Coolant | Yes |
| Type | High Performance High Penetration |
| UPC 11 | 69826256624 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Finish | PVD-TiAlN Coated |
| Material | Solid Carbide |
| Point Angle | 147 ° |
| Flute shape optimizes chip form to improve chip flow and evacuation|Can be reconditioned up to 3 times to its original specification|Broad standard assortment|Customized solutions, supported by tailor made|Single diameter and drill chamfering tools as standard |
| 0 deg body half taper |
| Axial concentric coolant entry on circle |
| 20 bar coolant |
| Axial concentric coolant exit on circle |
| EFW feed direction |
| 20.45 deg orthogonal rake |
| 30.017 deg helix flute |
| 55 mm L body |
| 89.7 mm L functional |
| 36 mm L clamping |
| 41.3 mm L usable |
| 3 maximum regrinds |
| 1.3 mm L point |
| 3 mm L regrind |
| 9947 r/min |
| H6 connection diameter tolerance |
| H8 achievable hole tolerance |
| P material grade |
| 860.1..A1 (5xD) tool style |
