High penetration rates|Long tool life, controlled wear formation|Low cost per hole|Improved performance reliability|Optimized chip evacuation|Excellent and consistent hole tolerance|Dedicated geometries |
0 deg body half taper |
Axial concentric coolant entry on circle |
20 bar coolant |
Axial concentric coolant exit on circle |
EFW feed direction |
16.78 deg orthogonal rake |
24.806 deg helix flute |
43 mm L body |
78 mm L functional |
36 mm L clamping |
20.2 mm L usable |
3 maximum regrinds |
1 mm L point |
3 mm L regrind |
12434 r/min |
H6 connection diameter tolerance |
H8 achievable hole tolerance |
P material grade |

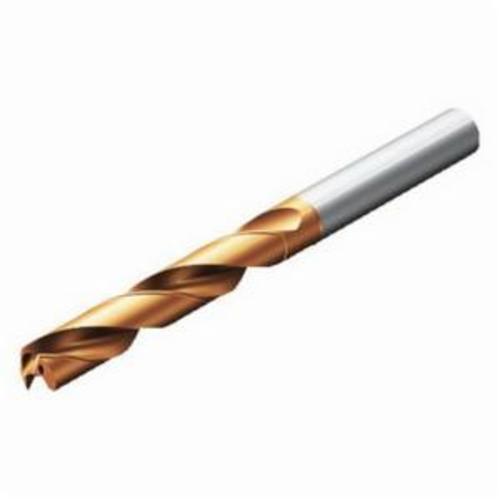

860.1..A1 (3xD) tool style |
