Sandvik Coromant

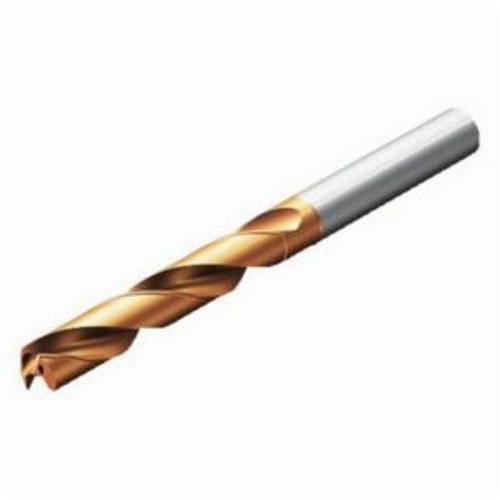

Sandvik Coromant 6040084 CoroDrill® 860 High Performance Screw Machine Drill, 0.1248 in Dia x 2.4409 in L, Solid Carbide
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 6040084 CoroDrill® 860 High Performance Screw Machine Drill, 0.1248 in Dia x 2.4409 in L, Solid Carbide
SKU1251623
MFGR #6040084
Your Cost: $155.53/ea
CoroDrill® 860 is a solid carbide drill designed for a fast and problem-free drilling. It maximizes productivity through high metal cutting efficiency and machine utilization. With excellent chip evacuation in long and short chipping materials, CoroDrill 860 provides green light machining at high penetration rates. the CoroDrill 860 product offer consists of three drill geometries - optimized for steel, stainless steel and aluminium. the drill comes in lengths 3 - 8xD as standard. Extended assortment is available as Tailor Made.
CoroDrill® 860 is a solid carbide drill designed for a fast and problem-free drilling. It maximizes productivity through high metal cutting efficiency and machine utilization. With excellent chip evacuation in long and short chipping materials, CoroDrill 860 provides green light machining at high penetration rates. the CoroDrill 860 product offer consists of three drill geometries - optimized for steel, stainless steel and aluminium. the drill comes in lengths 3 - 8xD as standard. Extended assortment is available as Tailor Made.
Alternate Catalog Number 860.1-0317-016A1-PM 4234 Catalog Number 6040084 Color 6 mm Country of Origin US Cutting Depth 2-3XD Cutting Direction Right Hand Cutting Edge Material Solid Carbide Diameter 0.1248 in Drill Diameter Measurement System Imperial Flute Length 0.7874 in Flute Type SSK Gross Weight Per Pack 0.0400 lb Item Group 720 Letter|Wire Size PVD Number of Flutes 2 Overall Length 2.4409 in Point Angle 143 deg Point Type Split Series CoroDrill® 860 Shank Size 0.2362 in Shank Type Cylinder Standards DIN1835-A, DIN6535-HA, DIN 6537 K Type High Performance UPC 11 69826256568 Warranty High Performance Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Applicable Materials Steel, Stainless Steel and Aluminum Finish PVD TiAlN Coated Material Solid Carbide 4234 manufacturer grade 0 deg body half taper Axial concentric coolant entry on circle 20 bar coolant Axial concentric coolant exit on circle EFW feed direction 19.7 deg orthogonal rake 28.954 deg helix flute 26 mm L body 61.5 mm L functional 36 mm L clamping 10 mm L usable 3 maximum regrinds 0.5 mm L point 3 mm L regrind 25103 r/min H6 connection diameter tolerance H8 achievable hole tolerance P material grade 860.1..A1 (3xD) tool style
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | 860.1-0317-016A1-PM 4234 |
| Catalog Number | 6040084 |
| Color | 6 mm |
| Country of Origin | US |
| Cutting Depth | 2-3XD |
| Cutting Direction | Right Hand |
| Cutting Edge Material | Solid Carbide |
| Diameter | 0.1248 in |
| Drill Diameter Measurement System | Imperial |
| Flute Length | 0.7874 in |
| Flute Type | SSK |
| Gross Weight Per Pack | 0.0400 lb |
| Item Group | 720 |
| Letter|Wire Size | PVD |
| Number of Flutes | 2 |
| Overall Length | 2.4409 in |
| Point Angle | 143 deg |
| Point Type | Split |
| Series | CoroDrill® 860 |
| Shank Size | 0.2362 in |
| Shank Type | Cylinder |
| Standards | DIN1835-A, DIN6535-HA, DIN 6537 K |
| Type | High Performance |
| UPC 11 | 69826256568 |
| Warranty | High Performance |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Applicable Materials | Steel, Stainless Steel and Aluminum |
| Finish | PVD TiAlN Coated |
| Material | Solid Carbide |
| 4234 manufacturer grade |
| 0 deg body half taper |
| Axial concentric coolant entry on circle |
| 20 bar coolant |
| Axial concentric coolant exit on circle |
| EFW feed direction |
| 19.7 deg orthogonal rake |
| 28.954 deg helix flute |
| 26 mm L body |
| 61.5 mm L functional |
| 36 mm L clamping |
| 10 mm L usable |
| 3 maximum regrinds |
| 0.5 mm L point |
| 3 mm L regrind |
| 25103 r/min |
| H6 connection diameter tolerance |
| H8 achievable hole tolerance |
| P material grade |
| 860.1..A1 (3xD) tool style |
