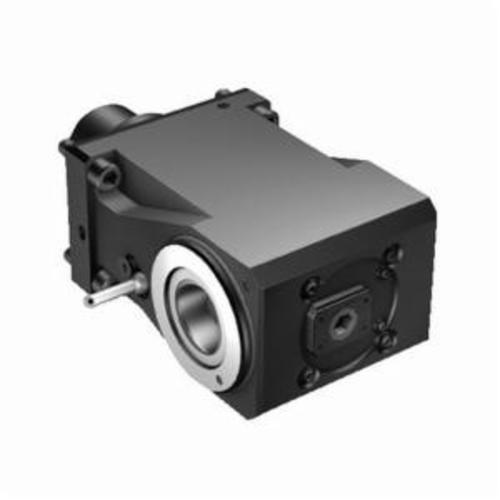

Sandvik Coromant 6039848 Mechanical Neutral, Coromont Capto® Shank, C4 Workpiece Side, MS-40A, 4.9212 in OAL, 5.1338 in Dia Body
Clamping Units
1230647
MFG #: 6039848
Sandvik Coromant
5963.03000
/ ea
Sandvik Coromant Driven Tool Holder, Mechanical Neutral, MS-40A, 5.1338 in Body Dia, 3.3464 in Gage Length, 4.9212 in Overall Length, 5.1338 in Overall Width, ANSI Code: C4-DNI-MS40A-E, ISO Code: C4-DNI-MS40A-E, 1.7126 in Shank Length, Coromont Capto® Shank, C4 System Size Workpiece Side
- Features
| 90 deg body |
| Decentral over flange and axial coolant entry |
| 80 bar coolant |
| Decentral coolant exit with nozzles, adjustable |
| 125 mm L protruding |
| 69 mm L dead shank |
| 63 Nm cutting torque |
| 85 mm overhang |
| 6000 r/min |
| 40 Nm torque |
| Cx-DNI-MS tool style |
| 65 mm W functional |
| 40 mm body machine side |
| 40 mm workpiece side connection |
| 20 life cycle state |
