Sandvik Coromant

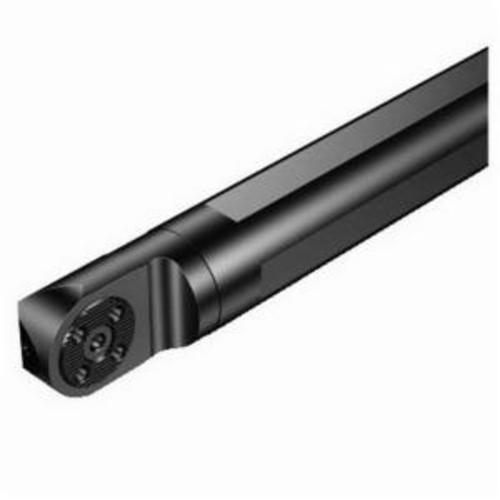

Sandvik Coromant 6038529 Cylindrical Shank with Flat to CoroTurn® SL Boring Bar Adapter, 12.5984 in OAL, Neutral
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 6038529 Cylindrical Shank with Flat to CoroTurn® SL Boring Bar Adapter, 12.5984 in OAL, Neutral
SKU1250649
MFGR #6038529
Your Cost: $1,223.42/ea
Sandvik Coromant Boring Bar Adapter, Cylindrical Shank with Flat to CoroTurn® SL, 12.5984 in Overall Length, 1.5748 in Shank Dia, Cylindrical with 3-Flats Shank, Neutral Cutting, Steel
Sandvik Coromant Boring Bar Adapter, Cylindrical Shank with Flat to CoroTurn® SL, 12.5984 in Overall Length, 1.5748 in Shank Dia, Cylindrical with 3-Flats Shank, Neutral Cutting, Steel
Alternate Catalog Number SL-40-32NF Catalog Number 6038529 Country of Origin IN Cutting Direction Neutral Finish Cylindrical Shank with Flat to CoroTurn® SL Gross Weight Per Pack 6.60000 lb Insert Compatibility 6.1 Insert Inscribed Circle 3 Insert Screw 320 mm Insert Shape 300 Item Group 480 Material Steel Maximum Bore Depth Steel Maximum Bore Diameter Cylindrical With 3-Flats Minimum Bore Diameter 5758305 Key, 5758458 Screw and 5759198 O-Ring Overall Length 12.5984 in Shank Type Cylindrical with 3-Flats Type Cylindrical Shank with Flat to CoroTurn® SL UPC 11 69826256199 Width Offset 40 mm Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Series 40 mm Shank Diameter 1.5748 in Screw mounted workpiece side adaptive interface 90 deg body workpiece side 40 mm Dia body 0 deg body half taper Axial concentric coolant entry 70 bar coolant Axial concentric coolant exit 32 mm Dia workpiece side connection 37 mm H shank 244 mm L body 20 life cycle state 300 mm L functional 320 mm L protruding 160 mm L usable 50 - 160 mm overhang SL..NF tool style 5.9 mm W functional ANSI Code: SL-40-32NF ISO Code: SL-40-32NF
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | SL-40-32NF |
| Catalog Number | 6038529 |
| Country of Origin | IN |
| Cutting Direction | Neutral |
| Finish | Cylindrical Shank with Flat to CoroTurn® SL |
| Gross Weight Per Pack | 6.60000 lb |
| Insert Compatibility | 6.1 |
| Insert Inscribed Circle | 3 |
| Insert Screw | 320 mm |
| Insert Shape | 300 |
| Item Group | 480 |
| Material | Steel |
| Maximum Bore Depth | Steel |
| Maximum Bore Diameter | Cylindrical With 3-Flats |
| Minimum Bore Diameter | 5758305 Key, 5758458 Screw and 5759198 O-Ring |
| Overall Length | 12.5984 in |
| Shank Type | Cylindrical with 3-Flats |
| Type | Cylindrical Shank with Flat to CoroTurn® SL |
| UPC 11 | 69826256199 |
| Width Offset | 40 mm |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Series | 40 mm |
| Shank Diameter | 1.5748 in |
| Screw mounted workpiece side adaptive interface |
| 90 deg body workpiece side |
| 40 mm Dia body |
| 0 deg body half taper |
| Axial concentric coolant entry |
| 70 bar coolant |
| Axial concentric coolant exit |
| 32 mm Dia workpiece side connection |
| 37 mm H shank |
| 244 mm L body |
| 20 life cycle state |
| 300 mm L functional |
| 320 mm L protruding |
| 160 mm L usable |
| 50 - 160 mm overhang |
| SL..NF tool style |
| 5.9 mm W functional |
| ANSI Code: SL-40-32NF |
| ISO Code: SL-40-32NF |
