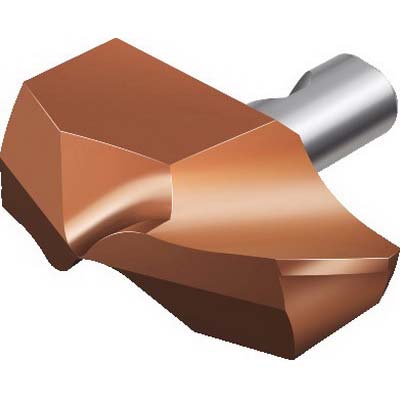

Sandvik Coromant 6035767 CoroDrill® 870 Drill Tip, For Use With CoroDrill® 870 SZ20 Drill, 870-2050-20-PM 4234, 0.807 in Inscribed, 4234 Grade
Custom_Product_Images_Illustration
Sandvik Coromant 6035767 CoroDrill® 870 Drill Tip, For Use With CoroDrill® 870 SZ20 Drill, 870-2050-20-PM 4234, 0.807 in Inscribed, 4234 Grade
SKU1252770
MFGR #6035767
Your Cost: $139.93/ea
List: Sandvik Coromant Drill Tip, Series: CoroDrill® 870, ANSI Code: 870-2050-20-PM 4234, 0.4921 in Insert, 0.807 in Inscribed Circle, 1 Edges, 4234 Grade, For Use With: CoroDrill® 870 SZ20 Drill, Right Hand Cutting, Carbide, PVD Coated, Applicable Materials: P
Sandvik Coromant Drill Tip, Series: CoroDrill® 870, ANSI Code: 870-2050-20-PM 4234, 0.4921 in Insert, 0.807 in Inscribed Circle, 1 Edges, 4234 Grade, For Use With: CoroDrill® 870 SZ20 Drill, Right Hand Cutting, Carbide, PVD Coated, Applicable Materials: P
ANSI Code 870-2050-20-PM 4234 Applicable Materials P Catalog Number 6035767 Color CoroDrill® 870 Compatible With 870-2050-20-PM 4234 Country of Origin SE Cutting Direction Right Hand Gross Weight Per Pack 0.0400 lb Insert Shape CoroDrill® 870 Insert Size 0.4921 in Material Carbide Number of Cutting Edges 1 Number of Edges 1 Series CoroDrill® 870 Type Right Hand UPC 11 69826266058 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Diameter 20.5 Finish PVD Coated Grade 4234 Included Angle 142 Inscribed Circle 0.807 in Insert Seat Size #20 Manufacturer's Grade 4234 Suitable For Use With CoroDrill® 870 SZ20 Drill 20 life cycle state EFW cutting feed direction 13 deg orthogonal rake 9.39 mm L functional 21.1 mm OAL 3.11 mm L point 7.16 mm THK insert 142 deg point K8 cutting diameter tolerance class H9 achievable hole tolerance 870-PM tool style 2 effective cutting edges 0.2 - 0.5 mm/r cutting feed
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| ANSI Code | 870-2050-20-PM 4234 |
| Applicable Materials | P |
| Catalog Number | 6035767 |
| Color | CoroDrill® 870 |
| Compatible With | 870-2050-20-PM 4234 |
| Country of Origin | SE |
| Cutting Direction | Right Hand |
| Gross Weight Per Pack | 0.0400 lb |
| Insert Shape | CoroDrill® 870 |
| Insert Size | 0.4921 in |
| Material | Carbide |
| Number of Cutting Edges | 1 |
| Number of Edges | 1 |
| Series | CoroDrill® 870 |
| Type | Right Hand |
| UPC 11 | 69826266058 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Diameter | 20.5 |
| Finish | PVD Coated |
| Grade | 4234 |
| Included Angle | 142 |
| Inscribed Circle | 0.807 in |
| Insert Seat Size | #20 |
| Manufacturer's Grade | 4234 |
| Suitable For Use With | CoroDrill® 870 SZ20 Drill |
| 20 life cycle state |
| EFW cutting feed direction |
| 13 deg orthogonal rake |
| 9.39 mm L functional |
| 21.1 mm OAL |
| 3.11 mm L point |
| 7.16 mm THK insert |
| 142 deg point |
| K8 cutting diameter tolerance class |
| H9 achievable hole tolerance |
| 870-PM tool style |
| 2 effective cutting edges |
| 0.2 - 0.5 mm/r cutting feed |
