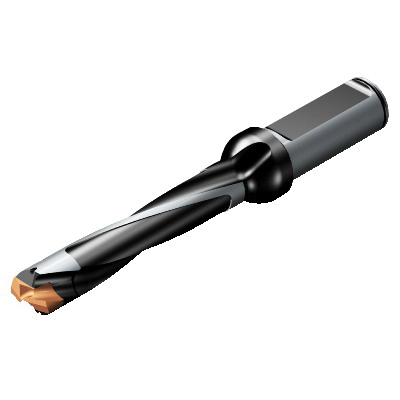

Sandvik Coromant 6035717 CoroDrill® 870 Exchangeable Tip Drill, 870-1700-17LX075-5
Custom_Product_Images_Illustration
Sandvik Coromant 6035717 CoroDrill® 870 Exchangeable Tip Drill, 870-1700-17LX075-5
SKU1105040
MFGR #6035717
Your Cost: $612.10/ea
Sandvik Coromant Exchangeable Tip Drill, Series: CoroDrill® 870, ANSI Code: 870-1700-17LX075-5, 0.4173 in Insert, 2 Edges, Right Hand Cutting, Steel
Sandvik Coromant Exchangeable Tip Drill, Series: CoroDrill® 870, ANSI Code: 870-1700-17LX075-5, 0.4173 in Insert, 2 Edges, Right Hand Cutting, Steel
Alternate Catalog Number 870-1700-17LX075-5 ANSI Code 870-1700-17LX075-5 Catalog Number 6035717 Country of Origin SE Cutting Direction Right Hand Drill Depth by Diameter Ratio 5.178XD Drill Size 17 to 17.99 Flute Length 95 Gross Weight Per Pack 0.4400 lb Insert Size 0.4173 in Item Group 446 Material Steel Maximum Drill Depth 92.69 Number of Edges 2 Overall Length 162 Series CoroDrill® 870 Shank Diameter 19.05 Shank Length 50 Shank Type Cylindrical With Flat UPC 11 69826265997 UPC 12 69826265997 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant 870..LX-5 tool style 0 deg body half taper 20 life cycle state Cylindrical/clamping shank Axial concentric entry 10 bar coolant Integrated screw clamping Axial inclined exit 17.9 mm Dia cutting 19.05 mm Dia connection 20 deg right hand flute 95 mm L body 109.27 mm maximum overhang 2.73 mm L point 13500 r/min H9 achievable hole tolerance 17.3 mm H shank EFW feed direction 17 - 17.99 mm drill 3/4 Dia shank
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | 870-1700-17LX075-5 |
| ANSI Code | 870-1700-17LX075-5 |
| Catalog Number | 6035717 |
| Country of Origin | SE |
| Cutting Direction | Right Hand |
| Drill Depth by Diameter Ratio | 5.178XD |
| Drill Size | 17 to 17.99 |
| Flute Length | 95 |
| Gross Weight Per Pack | 0.4400 lb |
| Insert Size | 0.4173 in |
| Item Group | 446 |
| Material | Steel |
| Maximum Drill Depth | 92.69 |
| Number of Edges | 2 |
| Overall Length | 162 |
| Series | CoroDrill® 870 |
| Shank Diameter | 19.05 |
| Shank Length | 50 |
| Shank Type | Cylindrical With Flat |
| UPC 11 | 69826265997 |
| UPC 12 | 69826265997 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| 870..LX-5 tool style |
| 0 deg body half taper |
| 20 life cycle state |
| Cylindrical/clamping shank |
| Axial concentric entry |
| 10 bar coolant |
| Integrated screw clamping |
| Axial inclined exit |
| 17.9 mm Dia cutting |
| 19.05 mm Dia connection |
| 20 deg right hand flute |
| 95 mm L body |
| 109.27 mm maximum overhang |
| 2.73 mm L point |
| 13500 r/min |
| H9 achievable hole tolerance |
| 17.3 mm H shank |
| EFW feed direction |
| 17 - 17.99 mm drill |
| 3/4 Dia shank |
