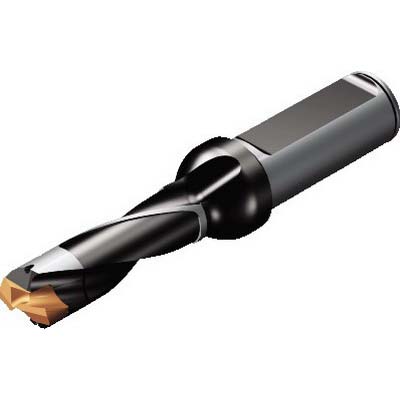

Sandvik Coromant 6035716 CoroDrill® 870 Exchangeable Tip Drill, 870-1700-17LX075-3
Custom_Product_Images_Illustration
Sandvik Coromant 6035716 CoroDrill® 870 Exchangeable Tip Drill, 870-1700-17LX075-3
SKU1252722
MFGR #6035716
Your Cost: $556.35/ea
Sandvik Coromant Exchangeable Tip Drill, Series: CoroDrill® 870, ANSI Code: 870-1700-17LX075-3, 0.4173 in Insert, 2 Edges, Right Hand Cutting, Steel
Sandvik Coromant Exchangeable Tip Drill, Series: CoroDrill® 870, ANSI Code: 870-1700-17LX075-3, 0.4173 in Insert, 2 Edges, Right Hand Cutting, Steel
Alternate Catalog Number 870-1700-17LX075-3 ANSI Code 870-1700-17LX075-3 Applicable Materials (8IP) Catalog Number 6035716 Color CoroDrill® 870 Compatible With 2.323 Country of Origin SE Grade 2.126 Gross Weight Per Pack 0.4400 lb Includes 5680 100-03 Inscribed Circle Right Hand Insert Shape 4.961 Insert Size 0.4173 in Item Group 446 Material Steel Maximum Rpm 30000 Number of Edges 2 Suitable For Use With 2.992 Type 2 UPC 11 69826265992 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutting Direction Right Hand Finish 2 Series CoroDrill® 870 Shank Diameter 0.75 870..LX-3 tool style 0 deg body half taper 20 life cycle state Cylindrical/clamping shank Axial concentric entry 10 bar coolant Integrated screw clamping Axial inclined exit 17.9 mm Dia cutting 19.05 mm Dia connection 20 deg right hand flute 59 mm L body 73.27 mm maximum overhang 2.73 mm L point 30000 r/min H9 achievable hole tolerance 17.3 mm H shank EFW feed direction 17 - 17.99 mm drill 3/4 Dia shank
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | 870-1700-17LX075-3 |
| ANSI Code | 870-1700-17LX075-3 |
| Applicable Materials | (8IP) |
| Catalog Number | 6035716 |
| Color | CoroDrill® 870 |
| Compatible With | 2.323 |
| Country of Origin | SE |
| Grade | 2.126 |
| Gross Weight Per Pack | 0.4400 lb |
| Includes | 5680 100-03 |
| Inscribed Circle | Right Hand |
| Insert Shape | 4.961 |
| Insert Size | 0.4173 in |
| Item Group | 446 |
| Material | Steel |
| Maximum Rpm | 30000 |
| Number of Edges | 2 |
| Suitable For Use With | 2.992 |
| Type | 2 |
| UPC 11 | 69826265992 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutting Direction | Right Hand |
| Finish | 2 |
| Series | CoroDrill® 870 |
| Shank Diameter | 0.75 |
| 870..LX-3 tool style |
| 0 deg body half taper |
| 20 life cycle state |
| Cylindrical/clamping shank |
| Axial concentric entry |
| 10 bar coolant |
| Integrated screw clamping |
| Axial inclined exit |
| 17.9 mm Dia cutting |
| 19.05 mm Dia connection |
| 20 deg right hand flute |
| 59 mm L body |
| 73.27 mm maximum overhang |
| 2.73 mm L point |
| 30000 r/min |
| H9 achievable hole tolerance |
| 17.3 mm H shank |
| EFW feed direction |
| 17 - 17.99 mm drill |
| 3/4 Dia shank |
