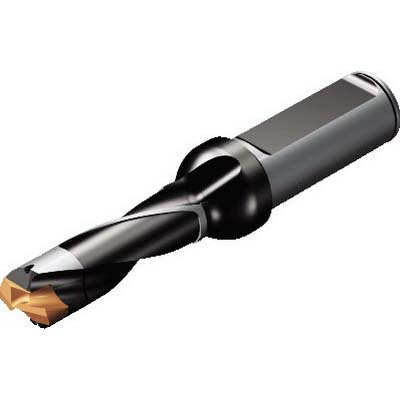

Sandvik Coromant 6035686 CoroDrill® 870 Exchangeable Tip Drill, 870-1500-15LX075-3
Custom_Product_Images_Illustration
Sandvik Coromant 6035686 CoroDrill® 870 Exchangeable Tip Drill, 870-1500-15LX075-3
SKU1175269
MFGR #6035686
Your Cost: $479.69/ea
Sandvik Coromant Exchangeable Tip Drill, Series: CoroDrill® 870, ANSI Code: 870-1500-15LX075-3, 0.3661 in Insert, 2 Edges, Right Hand Cutting, Steel
Sandvik Coromant Exchangeable Tip Drill, Series: CoroDrill® 870, ANSI Code: 870-1500-15LX075-3, 0.3661 in Insert, 2 Edges, Right Hand Cutting, Steel
Alternate Catalog Number 870-1500-15LX075-3 ANSI Code 870-1500-15LX075-3 Applicable Materials (7IP) Catalog Number 6035686 Color CoroDrill® 870 Compatible With 2.087 Country of Origin SE Grade 1.89 Gross Weight Per Pack 0.4400 lb Inscribed Circle Right Hand Insert Shape 4.685 Insert Size 0.3661 in Item Group 446 Material Steel Maximum Rpm 33000 Number of Edges 2 Suitable For Use With 2.717 Type 870-1500-15LX075-3 UPC 11 69826265958 UPC 12 69826265958 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutting Direction Right Hand Finish 2 Series CoroDrill® 870 Shank Diameter 0.75 870..LX-3 tool style 0 deg body half taper 20 life cycle state Cylindrical/clamping shank Axial concentric entry 10 bar coolant Integrated screw clamping Axial inclined exit 15.9 mm Dia cutting 19.05 mm Dia connection 20 deg right hand flute 53 mm L body 66.56 mm maximum overhang 2.44 mm L point 33000 r/min H9 achievable hole tolerance 17.3 mm H shank EFW feed direction 15 - 15.99 mm drill 3/4 Dia shank
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | 870-1500-15LX075-3 |
| ANSI Code | 870-1500-15LX075-3 |
| Applicable Materials | (7IP) |
| Catalog Number | 6035686 |
| Color | CoroDrill® 870 |
| Compatible With | 2.087 |
| Country of Origin | SE |
| Grade | 1.89 |
| Gross Weight Per Pack | 0.4400 lb |
| Inscribed Circle | Right Hand |
| Insert Shape | 4.685 |
| Insert Size | 0.3661 in |
| Item Group | 446 |
| Material | Steel |
| Maximum Rpm | 33000 |
| Number of Edges | 2 |
| Suitable For Use With | 2.717 |
| Type | 870-1500-15LX075-3 |
| UPC 11 | 69826265958 |
| UPC 12 | 69826265958 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutting Direction | Right Hand |
| Finish | 2 |
| Series | CoroDrill® 870 |
| Shank Diameter | 0.75 |
| 870..LX-3 tool style |
| 0 deg body half taper |
| 20 life cycle state |
| Cylindrical/clamping shank |
| Axial concentric entry |
| 10 bar coolant |
| Integrated screw clamping |
| Axial inclined exit |
| 15.9 mm Dia cutting |
| 19.05 mm Dia connection |
| 20 deg right hand flute |
| 53 mm L body |
| 66.56 mm maximum overhang |
| 2.44 mm L point |
| 33000 r/min |
| H9 achievable hole tolerance |
| 17.3 mm H shank |
| EFW feed direction |
| 15 - 15.99 mm drill |
| 3/4 Dia shank |
