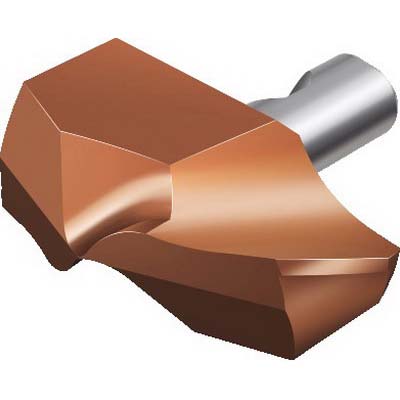

Sandvik Coromant 6035638 CoroDrill® 870 Drill Tip, For Use With CoroDrill® 870 SZ10 Drill, 870-1220-10-PM 4234, 0.4803 in Inscribed, 4234 Grade
Custom_Product_Images_Illustration
Sandvik Coromant 6035638 CoroDrill® 870 Drill Tip, For Use With CoroDrill® 870 SZ10 Drill, 870-1220-10-PM 4234, 0.4803 in Inscribed, 4234 Grade
SKU1235917
MFGR #6035638
Your Cost: $101.42/ea
List: Sandvik Coromant Drill Tip, Series: CoroDrill® 870, ANSI Code: 870-1220-10-PM 4234, 0.2952 in Insert, 0.4803 in Inscribed Circle, 1 Edges, 4234 Grade, For Use With: CoroDrill® 870 SZ10 Drill, Right Hand Cutting, Carbide, PVD Coated, Applicable Materials: P
Sandvik Coromant Drill Tip, Series: CoroDrill® 870, ANSI Code: 870-1220-10-PM 4234, 0.2952 in Insert, 0.4803 in Inscribed Circle, 1 Edges, 4234 Grade, For Use With: CoroDrill® 870 SZ10 Drill, Right Hand Cutting, Carbide, PVD Coated, Applicable Materials: P
ANSI Code 870-1220-10-PM 4234 Applicable Materials Non-Ferrous Metal and Steel Catalog Number 6035638 Country of Origin SE Cutting Direction Right Hand Gross Weight Per Pack 8.1600 lb Insert Size 0.2952 in Material Carbide Number of Cutting Edges 1 Series CoroDrill® 870 Through Coolant No UPC 11 69826265909 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Diameter 12.2 mm Finish PVD-TiAlN Coated Included Angle 142 ° Inscribed Circle 0.4803 in Insert Seat Size #10 Manufacturer's Grade 4234 Suitable For Use With CoroDrill® 870 #10 Drill PM 4234 is considered to be an all-round tip|Although primarily intended for low alloyed and carbon steels, it also shows good functionality and tool life in austenitic stainless steels as well as cast irons|The grade used in PM 4234 shows an excellent combination of wear resistance and toughness|Easy handling and secure tip changing|Tip changing possible while tool is in the machine to reduce downtime EFW cutting feed direction 13 deg orthogonal rake 5.64 mm L functional 12.7 mm OAL 1.86 mm L point 4.66 mm THK insert 142 deg point K8 cutting diameter tolerance class H9 achievable hole tolerance 870-PM tool style 2 effective cutting edges 0.14 - 0.37 mm/r cutting feed
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| ANSI Code | 870-1220-10-PM 4234 |
| Applicable Materials | Non-Ferrous Metal and Steel |
| Catalog Number | 6035638 |
| Country of Origin | SE |
| Cutting Direction | Right Hand |
| Gross Weight Per Pack | 8.1600 lb |
| Insert Size | 0.2952 in |
| Material | Carbide |
| Number of Cutting Edges | 1 |
| Series | CoroDrill® 870 |
| Through Coolant | No |
| UPC 11 | 69826265909 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Diameter | 12.2 mm |
| Finish | PVD-TiAlN Coated |
| Included Angle | 142 ° |
| Inscribed Circle | 0.4803 in |
| Insert Seat Size | #10 |
| Manufacturer's Grade | 4234 |
| Suitable For Use With | CoroDrill® 870 #10 Drill |
| PM 4234 is considered to be an all-round tip|Although primarily intended for low alloyed and carbon steels, it also shows good functionality and tool life in austenitic stainless steels as well as cast irons|The grade used in PM 4234 shows an excellent combination of wear resistance and toughness|Easy handling and secure tip changing|Tip changing possible while tool is in the machine to reduce downtime |
| EFW cutting feed direction |
| 13 deg orthogonal rake |
| 5.64 mm L functional |
| 12.7 mm OAL |
| 1.86 mm L point |
| 4.66 mm THK insert |
| 142 deg point |
| K8 cutting diameter tolerance class |
| H9 achievable hole tolerance |
| 870-PM tool style |
| 2 effective cutting edges |
| 0.14 - 0.37 mm/r cutting feed |
