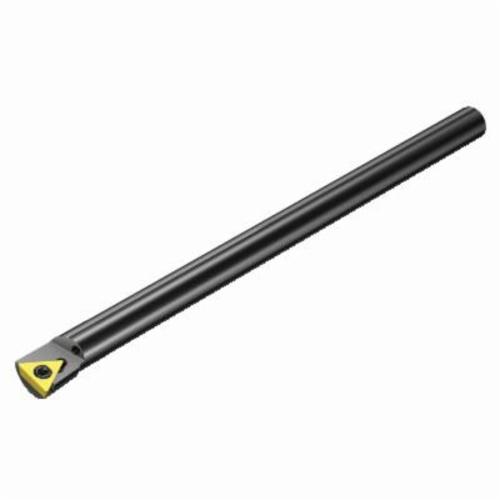

Sandvik Coromant 6011735 CoroTurn® 107 Indexable Boring Bar, 1.2598 in Min, 10.6299 in OAL, Right Hand
Custom_Product_Images_Illustration
Sandvik Coromant 6011735 CoroTurn® 107 Indexable Boring Bar, 1.2598 in Min, 10.6299 in OAL, Right Hand
SKU1245947
MFGR #6011735
Your Cost: $1,530.57/ea
Sandvik Coromant Indexable Boring Bar, Series: CoroTurn® 107, 1.2598 in Minimum Bore Dia, 5.9055 in Maximum Bore Depth, 10.6299 in Overall Length, 0.9842 in Shank Dia, Cylindrical Shank, Right Hand Cutting, Insert Compatibility: TCMT 11 03 04 (MIIDM), TCMT 221 (MIIDN), Triangle Insert, 0.6692 in Width Offset, Carbide
Sandvik Coromant Indexable Boring Bar, Series: CoroTurn® 107, 1.2598 in Minimum Bore Dia, 5.9055 in Maximum Bore Depth, 10.6299 in Overall Length, 0.9842 in Shank Dia, Cylindrical Shank, Right Hand Cutting, Insert Compatibility: TCMT 11 03 04 (MIIDM), TCMT 221 (MIIDN), Triangle Insert, 0.6692 in Width Offset, Carbide
Alternate Catalog Number E25T-STFCR 11-RB1 Catalog Number 6011735 Country of Origin US Gross Weight Per Pack 3.4800 lb Inscribed Circle 1/4 Insert Screw 5763193 Insert Thickness 1/8 in Item Group 210 Overall Length 10.63 in Series CoroTurn® 107 Shank Type Cylindrical Toolholder Style E..STFCR-R Toolholder Type E..STFCR-R UPC 11 69826254390 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Hand of Holder Right Insert Compatibility TCMT 11 03 04 Insert Shape Triangle Material Carbide Maximum Bore Depth 5.906 in Minimum Bore Diameter 1.26 in Shank Diameter 0.984 in Through Coolant Yes Screw clamp design of CoroTurn® 107 ensures stability and unobstructed chip flow while turning, it is easy to handle, clean and maintain|Tool holders are equipped with nozzles that direct precision coolant right at the insert edge to boost process security and provide excellent chip control|When turning internally or machining slender components, you can rely on the super sharp cutting edges of CoroTurn® 107|The low cutting forces and precision coolant combined with a broad range of inserts ensures high quality surface finish|Wiper geometries available for high feeds and high quality surface finish|Ground, super sharp insert offer for exceptional surface finish|Holders with conventional and precision coolant design 0 deg body workpiece side Axial concentric coolant entry Axial inclined coolant exit 0 deg orthogonal rake 145.038 lbf/sq-in coolant pressure 91 deg cutting edge -0.8878 deg inclination 20 life cycle state Coolant through -1 deg lead 0 deg maximum ramping 0.9 Nm torque 40 - 60 deg insert screw clamping 1/4 in insert seat ANSI Code: E25T-STFCR 11-RB1 ISO Code: E25T-STFCR 11-RB1
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | E25T-STFCR 11-RB1 |
| Catalog Number | 6011735 |
| Country of Origin | US |
| Gross Weight Per Pack | 3.4800 lb |
| Inscribed Circle | 1/4 |
| Insert Screw | 5763193 |
| Insert Thickness | 1/8 in |
| Item Group | 210 |
| Overall Length | 10.63 in |
| Series | CoroTurn® 107 |
| Shank Type | Cylindrical |
| Toolholder Style | E..STFCR-R |
| Toolholder Type | E..STFCR-R |
| UPC 11 | 69826254390 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Hand of Holder | Right |
| Insert Compatibility | TCMT 11 03 04 |
| Insert Shape | Triangle |
| Material | Carbide |
| Maximum Bore Depth | 5.906 in |
| Minimum Bore Diameter | 1.26 in |
| Shank Diameter | 0.984 in |
| Through Coolant | Yes |
| Screw clamp design of CoroTurn® 107 ensures stability and unobstructed chip flow while turning, it is easy to handle, clean and maintain|Tool holders are equipped with nozzles that direct precision coolant right at the insert edge to boost process security and provide excellent chip control|When turning internally or machining slender components, you can rely on the super sharp cutting edges of CoroTurn® 107|The low cutting forces and precision coolant combined with a broad range of inserts ensures high quality surface finish|Wiper geometries available for high feeds and high quality surface finish|Ground, super sharp insert offer for exceptional surface finish|Holders with conventional and precision coolant design |
| 0 deg body workpiece side |
| Axial concentric coolant entry |
| Axial inclined coolant exit |
| 0 deg orthogonal rake |
| 145.038 lbf/sq-in coolant pressure |
| 91 deg cutting edge |
| -0.8878 deg inclination |
| 20 life cycle state |
| Coolant through |
| -1 deg lead |
| 0 deg maximum ramping |
| 0.9 Nm torque |
| 40 - 60 deg insert screw clamping |
| 1/4 in insert seat |
| ANSI Code: E25T-STFCR 11-RB1 |
| ISO Code: E25T-STFCR 11-RB1 |
