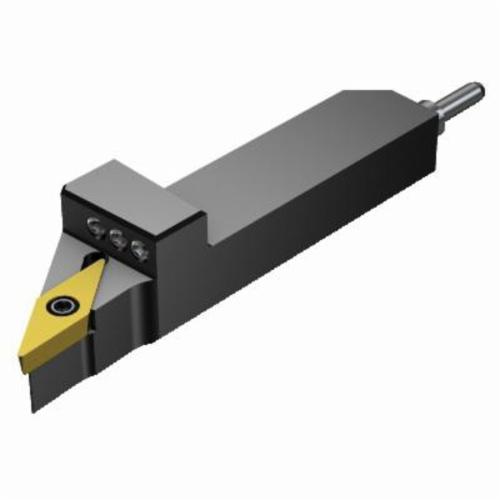

Sandvik Coromant 6010230 CoroTurn 107 Shank Tool, QS-SVJCR/L..HP Tool Holder, VCMT 110304 (MIIDM) and VCMT 221 (MIIDN) Insert, -3 deg Lead, Rectangle Shank, Right Hand
Custom_Product_Images_Illustration
Sandvik Coromant 6010230 CoroTurn 107 Shank Tool, QS-SVJCR/L..HP Tool Holder, VCMT 110304 (MIIDM) and VCMT 221 (MIIDN) Insert, -3 deg Lead, Rectangle Shank, Right Hand
SKU1237257
MFGR #6010230
Your Cost: $500.73/ea
Sandvik Coromant Shank Tool, Series: CoroTurn 107, QS-SVJCR/L..HP Tool Holder, 2.7559 in Overall Length, Rectangle Shank, 5/8 in H x 5/8 in W Shank, Insert Compatibility: VCMT 110304 (MIIDM) and VCMT 221 (MIIDN), 1/4 Insert Seat, Right Hand Cutting, -3 deg Lead Angle, ANSI Code: QS-SVJCR102XHP, ISO Code: QS-SVJCR102XHP, 0 deg Rake, Steel
Sandvik Coromant Shank Tool, Series: CoroTurn 107, QS-SVJCR/L..HP Tool Holder, 2.7559 in Overall Length, Rectangle Shank, 5/8 in H x 5/8 in W Shank, Insert Compatibility: VCMT 110304 (MIIDM) and VCMT 221 (MIIDN), 1/4 Insert Seat, Right Hand Cutting, -3 deg Lead Angle, ANSI Code: QS-SVJCR102XHP, ISO Code: QS-SVJCR102XHP, 0 deg Rake, Steel
Alternate Catalog Number QS-SVJCR102XHP ANSI Code QS-SVJCR102XHP Catalog Number 6010230 Country of Origin DE Gross Weight Per Pack 0.3200 lb Insert Seat Size 1/4 ISO Code QS-SVJCR102XHP Item Group 210 Material Steel Series CoroTurn 107 Shank Type Rectangle UPC 11 69826254494 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutting Direction Right Hand Insert Compatibility VCMT 110304 (MIIDM) and VCMT 221 (MIIDN) Lead Angle -3 deg Overall Length 2.7559 in Rake 0 deg Shank Size 5/8 in H x 5/8 in W Tool Holder Style QS-SVJCR/L..HP 0 deg body machine side 0 deg body workpiece side Axial concentric coolant entry Axial inclined focused coolant exit with nozzle 0 deg inclination 93 deg cutting edge 50 deg maximum ramping 20 life cycle state 28 mm maximum overhang 0.9 Nm torque 15.875 mm W functional 40 - 60 deg insert screw clamping V - 35 deg diamond insert ANSI Code: QS-SVJCR102XHP ISO Code: QS-SVJCR102XHP
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | QS-SVJCR102XHP |
| ANSI Code | QS-SVJCR102XHP |
| Catalog Number | 6010230 |
| Country of Origin | DE |
| Gross Weight Per Pack | 0.3200 lb |
| Insert Seat Size | 1/4 |
| ISO Code | QS-SVJCR102XHP |
| Item Group | 210 |
| Material | Steel |
| Series | CoroTurn 107 |
| Shank Type | Rectangle |
| UPC 11 | 69826254494 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutting Direction | Right Hand |
| Insert Compatibility | VCMT 110304 (MIIDM) and VCMT 221 (MIIDN) |
| Lead Angle | -3 deg |
| Overall Length | 2.7559 in |
| Rake | 0 deg |
| Shank Size | 5/8 in H x 5/8 in W |
| Tool Holder Style | QS-SVJCR/L..HP |
| 0 deg body machine side |
| 0 deg body workpiece side |
| Axial concentric coolant entry |
| Axial inclined focused coolant exit with nozzle |
| 0 deg inclination |
| 93 deg cutting edge |
| 50 deg maximum ramping |
| 20 life cycle state |
| 28 mm maximum overhang |
| 0.9 Nm torque |
| 15.875 mm W functional |
| 40 - 60 deg insert screw clamping |
| V - 35 deg diamond insert |
| ANSI Code: QS-SVJCR102XHP |
| ISO Code: QS-SVJCR102XHP |
