Sandvik Coromant

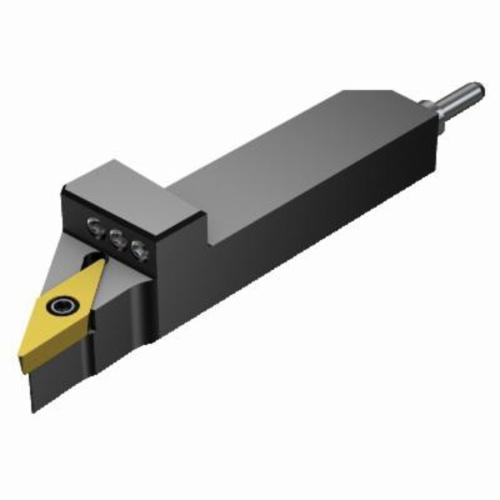

Sandvik Coromant 6010224 CoroTurn 107 Shank Tool, QS-SVJCR/L..HP Tool Holder, -3 deg Lead, Rectangle Shank, Left Hand
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 6010224 CoroTurn 107 Shank Tool, QS-SVJCR/L..HP Tool Holder, -3 deg Lead, Rectangle Shank, Left Hand
SKU1237220
MFGR #6010224
Your Cost: $500.73/ea
Sandvik Coromant Shank Tool, Series: CoroTurn 107, QS-SVJCR/L..HP Tool Holder, 2.7559 in Overall Length, Rectangle Shank, 5/8 in H x 5/8 in W Shank, Insert Compatibility: VCMT 110304 (MIIDM) and VCMT 221 (MIIDN), 1/4 Insert Seat, Left Hand Cutting, -3 deg Lead Angle, ANSI Code: QS-SVJCL102XHP, ISO Code: QS-SVJCL102XHP, 0 deg Rake, Steel
Sandvik Coromant Shank Tool, Series: CoroTurn 107, QS-SVJCR/L..HP Tool Holder, 2.7559 in Overall Length, Rectangle Shank, 5/8 in H x 5/8 in W Shank, Insert Compatibility: VCMT 110304 (MIIDM) and VCMT 221 (MIIDN), 1/4 Insert Seat, Left Hand Cutting, -3 deg Lead Angle, ANSI Code: QS-SVJCL102XHP, ISO Code: QS-SVJCL102XHP, 0 deg Rake, Steel
Alternate Catalog Number QS-SVJCL102XHP ANSI Code QS-SVJCL102XHP Catalog Number 6010224 Country of Origin DE Gross Weight Per Pack 0.3200 lb Insert Seat Size 1/4 ISO Code QS-SVJCL102XHP Item Group 210 Material Steel Series CoroTurn 107 Shank Type Rectangle UPC 11 69826254488 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutting Direction Left Hand Insert Compatibility VCMT 110304 (MIIDM) and VCMT 221 (MIIDN) Lead Angle -3 deg Overall Length 2.7559 in Rake 0 deg Shank Size 5/8 in H x 5/8 in W Tool Holder Style QS-SVJCR/L..HP 0 deg body machine side 0 deg body workpiece side Axial concentric coolant entry Axial inclined focused coolant exit with nozzle 0 deg inclination 93 deg cutting edge 50 deg maximum ramping 20 life cycle state 28 mm maximum overhang 0.9 Nm torque 15.875 mm W functional 40 - 60 deg insert screw clamping V - 35 deg diamond insert ANSI Code: QS-SVJCL102XHP ISO Code: QS-SVJCL102XHP
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | QS-SVJCL102XHP |
| ANSI Code | QS-SVJCL102XHP |
| Catalog Number | 6010224 |
| Country of Origin | DE |
| Gross Weight Per Pack | 0.3200 lb |
| Insert Seat Size | 1/4 |
| ISO Code | QS-SVJCL102XHP |
| Item Group | 210 |
| Material | Steel |
| Series | CoroTurn 107 |
| Shank Type | Rectangle |
| UPC 11 | 69826254488 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutting Direction | Left Hand |
| Insert Compatibility | VCMT 110304 (MIIDM) and VCMT 221 (MIIDN) |
| Lead Angle | -3 deg |
| Overall Length | 2.7559 in |
| Rake | 0 deg |
| Shank Size | 5/8 in H x 5/8 in W |
| Tool Holder Style | QS-SVJCR/L..HP |
| 0 deg body machine side |
| 0 deg body workpiece side |
| Axial concentric coolant entry |
| Axial inclined focused coolant exit with nozzle |
| 0 deg inclination |
| 93 deg cutting edge |
| 50 deg maximum ramping |
| 20 life cycle state |
| 28 mm maximum overhang |
| 0.9 Nm torque |
| 15.875 mm W functional |
| 40 - 60 deg insert screw clamping |
| V - 35 deg diamond insert |
| ANSI Code: QS-SVJCL102XHP |
| ISO Code: QS-SVJCL102XHP |
