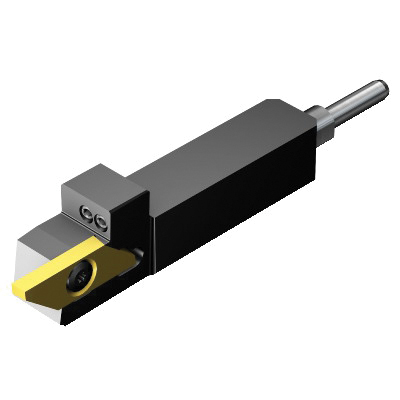

Sandvik Coromant 6010217 CoroCut® XS QS Indexable Shank Tool, MACR 3 200-N insert, 3 Insert Seat, Right Hand
Custom_Product_Images_Illustration
Sandvik Coromant 6010217 CoroCut® XS QS Indexable Shank Tool, MACR 3 200-N insert, 3 Insert Seat, Right Hand
SKU1237251
MFGR #6010217
Your Cost: $311.82/ea
Sandvik Coromant Shank Tool, Indexable, Series: CoroCut® XS QS, Insert Compatibility: MACR 3 200-N, QS-SMALR1012E3HP, 2.7559 in Overall Length, Rectangular Shank, 0.3937 in H x 0.4724 in W Shank, 3 Insert Seat, Right Hand Cutting, 0.3346 in Maximum Depth of Cut, Steel
Sandvik Coromant Shank Tool, Indexable, Series: CoroCut® XS QS, Insert Compatibility: MACR 3 200-N, QS-SMALR1012E3HP, 2.7559 in Overall Length, Rectangular Shank, 0.3937 in H x 0.4724 in W Shank, 3 Insert Seat, Right Hand Cutting, 0.3346 in Maximum Depth of Cut, Steel
Catalog Number 6010217 Gross Weight Per Pack 0.0900 lb Head Length 28 mm Internal or External External Material Steel Series CoroCut® XS QS Toolholder Style QS-SMALR/L..HP UPC 11 69826254481 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutting Direction Right Hand Insert Compatibility MACR 3 200-N Insert Seat Size #3 Maximum Depth of Cut 8.5 mm Overall Length 70 mm Screw Type Countersunk Head Shank Size 10 mm H x 12 mm W Shank Type Rectangular 0 deg body workpiece side 40 life cycle state Axial concentric coolant entry 80 bar coolant Axial inclined focused exit with nozzle coolant exit 90 deg cutting edge 28 mm minimum overhang 1.2 Nm torque 0 deg inclination 0 deg rake ANSI Code: QS-SMALR1012E3HP ISO Code: QS-SMALR1012E3HP
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Catalog Number | 6010217 |
| Gross Weight Per Pack | 0.0900 lb |
| Head Length | 28 mm |
| Internal or External | External |
| Material | Steel |
| Series | CoroCut® XS QS |
| Toolholder Style | QS-SMALR/L..HP |
| UPC 11 | 69826254481 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutting Direction | Right Hand |
| Insert Compatibility | MACR 3 200-N |
| Insert Seat Size | #3 |
| Maximum Depth of Cut | 8.5 mm |
| Overall Length | 70 mm |
| Screw Type | Countersunk Head |
| Shank Size | 10 mm H x 12 mm W |
| Shank Type | Rectangular |
| 0 deg body workpiece side |
| 40 life cycle state |
| Axial concentric coolant entry |
| 80 bar coolant |
| Axial inclined focused exit with nozzle coolant exit |
| 90 deg cutting edge |
| 28 mm minimum overhang |
| 1.2 Nm torque |
| 0 deg inclination |
| 0 deg rake |
| ANSI Code: QS-SMALR1012E3HP |
| ISO Code: QS-SMALR1012E3HP |
