Sandvik Coromant

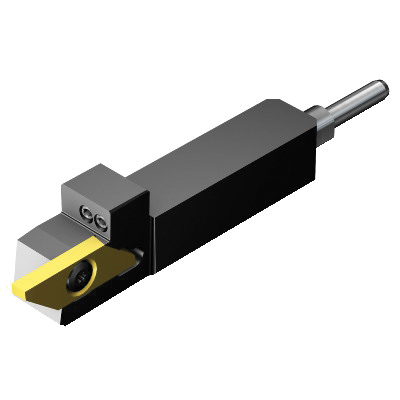

Sandvik Coromant 6010214 CoroCut® XS QS Indexable Shank Tool, MACL 3 200-N insert, 3 Insert Seat, Left Hand
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 6010214 CoroCut® XS QS Indexable Shank Tool, MACL 3 200-N insert, 3 Insert Seat, Left Hand
SKU1237233
MFGR #6010214
Your Cost: $478.79/ea
Sandvik Coromant Shank Tool, Indexable, Series: CoroCut® XS QS, Insert Compatibility: MACL 3 200-N, QS-SMALL1616E3HP, 2.7559 in Overall Length, Rectangular Shank, 0.6299 in H x 0.6299 in W Shank, 3 Insert Seat, Left Hand Cutting, 0.3346 in Maximum Depth of Cut, Steel
Sandvik Coromant Shank Tool, Indexable, Series: CoroCut® XS QS, Insert Compatibility: MACL 3 200-N, QS-SMALL1616E3HP, 2.7559 in Overall Length, Rectangular Shank, 0.6299 in H x 0.6299 in W Shank, 3 Insert Seat, Left Hand Cutting, 0.3346 in Maximum Depth of Cut, Steel
Alternate Catalog Number QS-SMALL1616E3HP Catalog Number 6010214 Country of Origin DE Gross Weight Per Pack 0.3400 lb Head Length 28 mm Internal or External External Item Group 425 Material Steel Series CoroCut® XS QS Toolholder Style QS-SMALR/L..HP UPC 11 69826254478 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutting Direction Left Hand Insert Compatibility MACL 3 200-N Insert Seat Size #3 Maximum Depth of Cut 8.5 mm Overall Length 70 mm Screw Type Countersunk Head Shank Size 16 mm H x 16 mm W Shank Type Rectangular 0 deg body workpiece side 20 life cycle state Axial concentric coolant entry 80 bar coolant Axial inclined focused exit with nozzle coolant exit 90 deg cutting edge 28 mm minimum overhang 1.2 Nm torque 0 deg inclination 0 deg rake ANSI Code: QS-SMALL1616E3HP ISO Code: QS-SMALL1616E3HP
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | QS-SMALL1616E3HP |
| Catalog Number | 6010214 |
| Country of Origin | DE |
| Gross Weight Per Pack | 0.3400 lb |
| Head Length | 28 mm |
| Internal or External | External |
| Item Group | 425 |
| Material | Steel |
| Series | CoroCut® XS QS |
| Toolholder Style | QS-SMALR/L..HP |
| UPC 11 | 69826254478 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutting Direction | Left Hand |
| Insert Compatibility | MACL 3 200-N |
| Insert Seat Size | #3 |
| Maximum Depth of Cut | 8.5 mm |
| Overall Length | 70 mm |
| Screw Type | Countersunk Head |
| Shank Size | 16 mm H x 16 mm W |
| Shank Type | Rectangular |
| 0 deg body workpiece side |
| 20 life cycle state |
| Axial concentric coolant entry |
| 80 bar coolant |
| Axial inclined focused exit with nozzle coolant exit |
| 90 deg cutting edge |
| 28 mm minimum overhang |
| 1.2 Nm torque |
| 0 deg inclination |
| 0 deg rake |
| ANSI Code: QS-SMALL1616E3HP |
| ISO Code: QS-SMALL1616E3HP |
