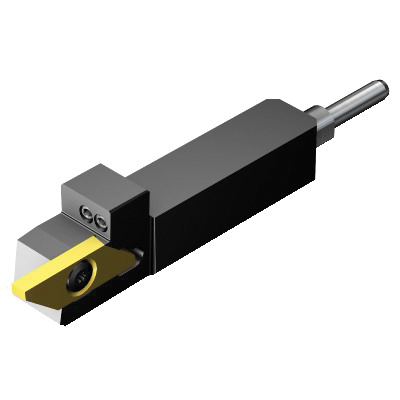

Sandvik Coromant 6010209 CoroCut® XS QS Indexable Shank Tool, MACL 3 200-N insert, 3 Insert Seat, Left Hand
Custom_Product_Images_Illustration
Sandvik Coromant 6010209 CoroCut® XS QS Indexable Shank Tool, MACL 3 200-N insert, 3 Insert Seat, Left Hand
SKU1237242
MFGR #6010209
$/ea
Sandvik Coromant Shank Tool, Indexable, Series: CoroCut® XS QS, Insert Compatibility: MACL 3 200-N, QS-SMALL06083XHP, 2.7559 in Overall Length, Rectangular Shank, 3/8 in H x 1/2 in W Shank, 3 Insert Seat, Left Hand Cutting, 0.3346 in Maximum Depth of Cut, Steel
Sandvik Coromant Shank Tool, Indexable, Series: CoroCut® XS QS, Insert Compatibility: MACL 3 200-N, QS-SMALL06083XHP, 2.7559 in Overall Length, Rectangular Shank, 3/8 in H x 1/2 in W Shank, 3 Insert Seat, Left Hand Cutting, 0.3346 in Maximum Depth of Cut, Steel
Catalog Number 6010209 Gross Weight Per Pack 0.0900 lb Head Length 1.102 in Internal or External External Material Steel Series CoroCut® XS QS Toolholder Style QS-SMALR/L..HP UPC 11 69826254473 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutting Direction Left Hand Insert Compatibility MACL 3 200-N Insert Seat Size #3 Maximum Depth of Cut 0.335 in Overall Length 2.756 in Screw Type Countersunk Head Shank Size 3/8 in H x 1/2 in W Shank Type Rectangular 0 deg body workpiece side 40 life cycle state Axial concentric coolant entry 80 bar coolant Axial inclined focused exit with nozzle coolant exit 90 deg cutting edge 28 mm minimum overhang 1.2 Nm torque 0 deg inclination 0 deg rake ANSI Code: QS-SMALL06083XHP ISO Code: QS-SMALL06083XHP
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Catalog Number | 6010209 |
| Gross Weight Per Pack | 0.0900 lb |
| Head Length | 1.102 in |
| Internal or External | External |
| Material | Steel |
| Series | CoroCut® XS QS |
| Toolholder Style | QS-SMALR/L..HP |
| UPC 11 | 69826254473 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutting Direction | Left Hand |
| Insert Compatibility | MACL 3 200-N |
| Insert Seat Size | #3 |
| Maximum Depth of Cut | 0.335 in |
| Overall Length | 2.756 in |
| Screw Type | Countersunk Head |
| Shank Size | 3/8 in H x 1/2 in W |
| Shank Type | Rectangular |
| 0 deg body workpiece side |
| 40 life cycle state |
| Axial concentric coolant entry |
| 80 bar coolant |
| Axial inclined focused exit with nozzle coolant exit |
| 90 deg cutting edge |
| 28 mm minimum overhang |
| 1.2 Nm torque |
| 0 deg inclination |
| 0 deg rake |
| ANSI Code: QS-SMALL06083XHP |
| ISO Code: QS-SMALL06083XHP |
