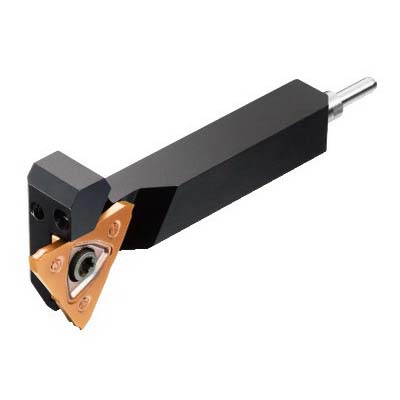

Sandvik Coromant 6010191 CoroCut® 3 QS, Left Hand, N123U3-0150- CM Insert, U Insert Seat
Custom_Product_Images_Illustration
Sandvik Coromant 6010191 CoroCut® 3 QS, Left Hand, N123U3-0150- CM Insert, U Insert Seat
SKU1237508
MFGR #6010191
Your Cost: $503.31/ea
Sandvik Coromant Shank Tool, Series: CoroCut® 3 QS, Insert Compatibility: N123U3-0150- CM, QS-LF123U023-08BHP, 2-3/4 in Overall Length, Rectangular Shank, 1/2 in H x 1/2 in W Shank, U Insert Seat, Left Hand Cutting, 1 in Inscribed Circle, Steel
Sandvik Coromant Shank Tool, Series: CoroCut® 3 QS, Insert Compatibility: N123U3-0150- CM, QS-LF123U023-08BHP, 2-3/4 in Overall Length, Rectangular Shank, 1/2 in H x 1/2 in W Shank, U Insert Seat, Left Hand Cutting, 1 in Inscribed Circle, Steel
Alternate Catalog Number QS-LF123U023-08BHP Catalog Number 6010191 Country of Origin DE Gross Weight Per Pack 0.2600 lb Internal or External External Item Group 480 Material Steel Series CoroCut® 3 Toolholder Style QS-LF123U023 UPC 11 69826254444 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutting Direction Left Hand Insert Compatibility N123U3-0150- CM Insert Seat Size U Maximum Depth of Cut 1/4 in Overall Length 2-3/4 in Shank Size 1/2 in H x 1/2 in W Shank Type Rectangular Precision grooving down to the smallest widths Maximum versatility - one holder for all insert widths Cost efficient due to three cutting edges Stabile interface 80 bar coolant 22 mm maximum workpiece parting diameter Axial inclined focused exit with nozzle coolant exit 0 deg inclination 0 deg rake orthogonal 90 deg cutting edge 20 mm minimum overhang 3 Nm torque 12.7 mm W shank 12.7 mm W functiona ANSI Code: QS-LF123U023-08BHP ISO Code: QS-LF123U023-08BHP
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | QS-LF123U023-08BHP |
| Catalog Number | 6010191 |
| Country of Origin | DE |
| Gross Weight Per Pack | 0.2600 lb |
| Internal or External | External |
| Item Group | 480 |
| Material | Steel |
| Series | CoroCut® 3 |
| Toolholder Style | QS-LF123U023 |
| UPC 11 | 69826254444 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutting Direction | Left Hand |
| Insert Compatibility | N123U3-0150- CM |
| Insert Seat Size | U |
| Maximum Depth of Cut | 1/4 in |
| Overall Length | 2-3/4 in |
| Shank Size | 1/2 in H x 1/2 in W |
| Shank Type | Rectangular |
| Precision grooving down to the smallest widths |
| Maximum versatility - one holder for all insert widths |
| Cost efficient due to three cutting edges |
| Stabile interface |
| 80 bar coolant |
| 22 mm maximum workpiece parting diameter |
| Axial inclined focused exit with nozzle coolant exit |
| 0 deg inclination |
| 0 deg rake orthogonal |
| 90 deg cutting edge |
| 20 mm minimum overhang |
| 3 Nm torque |
| 12.7 mm W shank |
| 12.7 mm W functiona |
| ANSI Code: QS-LF123U023-08BHP |
| ISO Code: QS-LF123U023-08BHP |
