Sandvik Coromant

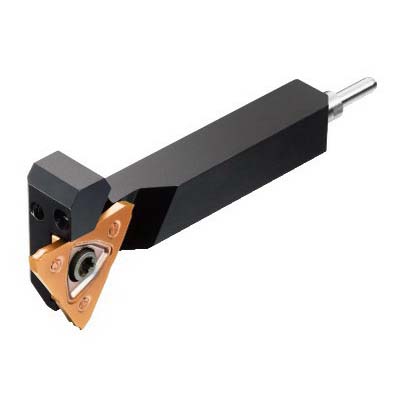

Sandvik Coromant 6010189 CoroCut® 3 QS, Left Hand, N123U3-0150- CM Insert, U Insert Seat
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 6010189 CoroCut® 3 QS, Left Hand, N123U3-0150- CM Insert, U Insert Seat
SKU1237540
MFGR #6010189
Your Cost: $503.31/ea
Sandvik Coromant Shank Tool, Series: CoroCut® 3 QS, Insert Compatibility: N123U3-0150- CM, QS-LF123U06-1616BHP, 2.7559 in Overall Length, Rectangular Shank, 0.6299 in H x 0.6299 in W Shank, U Insert Seat, Left Hand Cutting, Steel
Sandvik Coromant Shank Tool, Series: CoroCut® 3 QS, Insert Compatibility: N123U3-0150- CM, QS-LF123U06-1616BHP, 2.7559 in Overall Length, Rectangular Shank, 0.6299 in H x 0.6299 in W Shank, U Insert Seat, Left Hand Cutting, Steel
Alternate Catalog Number QS-LF123U06-1616BHP Catalog Number 6010189 Country of Origin DE Gross Weight Per Pack 0.3700 lb Internal or External External Item Group 480 Material Steel Series CoroCut® 3 Toolholder Style QS-LF123U06 Toolholder Type QS-LF123U06 UPC 11 69826254449 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutting Direction Left Hand Insert Compatibility N123U3-0150- CM Insert Seat Size U Maximum Depth of Cut 1/4 in Overall Length 2.756 in Shank Size 0.63 in H x 0.63 in W Shank Type Rectangular Precision grooving down to the smallest widths Maximum versatility - one holder for all insert widths Cost efficient due to three cutting edges Stabile interface 80 bar coolant Axial inclined focused exit with nozzle coolant exit 0 deg inclination 0 deg rake orthogonal 90 deg cutting edge 23 mm minimum overhang 3 Nm torque 16 mm W shank 16 mm W functional ANSI Code: QS-LF123U06-1616BHP ISO Code: QS-LF123U06-1616BHP
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | QS-LF123U06-1616BHP |
| Catalog Number | 6010189 |
| Country of Origin | DE |
| Gross Weight Per Pack | 0.3700 lb |
| Internal or External | External |
| Item Group | 480 |
| Material | Steel |
| Series | CoroCut® 3 |
| Toolholder Style | QS-LF123U06 |
| Toolholder Type | QS-LF123U06 |
| UPC 11 | 69826254449 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutting Direction | Left Hand |
| Insert Compatibility | N123U3-0150- CM |
| Insert Seat Size | U |
| Maximum Depth of Cut | 1/4 in |
| Overall Length | 2.756 in |
| Shank Size | 0.63 in H x 0.63 in W |
| Shank Type | Rectangular |
| Precision grooving down to the smallest widths |
| Maximum versatility - one holder for all insert widths |
| Cost efficient due to three cutting edges |
| Stabile interface |
| 80 bar coolant |
| Axial inclined focused exit with nozzle coolant exit |
| 0 deg inclination |
| 0 deg rake orthogonal |
| 90 deg cutting edge |
| 23 mm minimum overhang |
| 3 Nm torque |
| 16 mm W shank |
| 16 mm W functional |
| ANSI Code: QS-LF123U06-1616BHP |
| ISO Code: QS-LF123U06-1616BHP |
