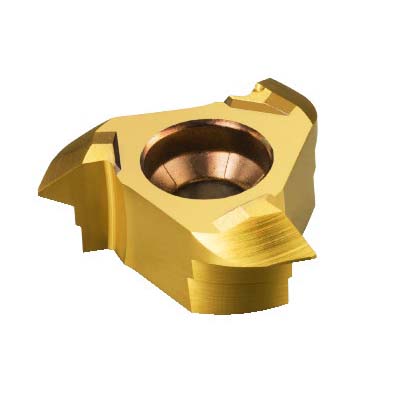

Sandvik Coromant 6010101 CoroMill® 327 Thread Milling Head, 327R09-18 18UN-THM 1025 ANSI, 327..UN-TH Insert, Carbide, 1025
Custom_Product_Images_Illustration
Sandvik Coromant 6010101 CoroMill® 327 Thread Milling Head, 327R09-18 18UN-THM 1025 ANSI, 327..UN-TH Insert, Carbide, 1025
SKU1231330
MFGR #6010101
Your Cost: $123.46/ea
List: Sandvik Coromant Thread Milling Head, Series: CoroMill® 327, 327..UN-TH Insert, 0.2303 in Length, Manufacturer's Grade: 1025, ANSI Code: 327R09-18 18UN-THM 1025, ISO Code: 327R09-18 18UN-THM 1025, Right Hand, Carbide, PVD Coated, Material Grade: K/M/N/P/S
Sandvik Coromant Thread Milling Head, Series: CoroMill® 327, 327..UN-TH Insert, 0.2303 in Length, Manufacturer's Grade: 1025, ANSI Code: 327R09-18 18UN-THM 1025, ISO Code: 327R09-18 18UN-THM 1025, Right Hand, Carbide, PVD Coated, Material Grade: K/M/N/P/S
ANSI Code 327R09-18 18UN-THM 1025 Catalog Number 6010101 Corner Radius PVD Country of Origin TH Finish PVD Coated Gross Weight Per Pack 0.0100 lb Hand of Insert Right Hole Diameter 5.85 mm Included Angle 60 ISO Code 327R09-18 18UN-THM 1025 Lead Angle 6 Length 0.2303 in Series CoroMill® 327 Thickness Right Thread Standard UN Thread Type Internal Threads Per Inch 18 Type PVD Coated UPC 11 69826254737 Width 327R09-18 18UN-THM 1025 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker 327R09-18 18UN-THM 1025 Cutting Direction Right Hand Inscribed Circle Carbide Insert Size CoroMill® 327 Insert Style 327..UN-TH Manufacturer's Grade 1025 Material Carbide Material Grade K/M/N/P/S Rake 327..UN-TH Shape 327..UN-TH 16.18 mm Dia neck CoroMill® 327 adaptive interface 0.76 mm D maximum cutting 16.18 mm Dia body 0 deg body half taper 10.62 mm Dia core at face Without coolant entry 17.7 mm Dia cutting Standard flute EFW feed direction 0 deg neutral helix flute 90 deg cutting edge 5.1 mm L body 5.1 mm L functional 5.85 mm L usable 5.85 mm maximum overhang UN60 thread form 18 TPI INT thread 6 effective cutting edge
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| ANSI Code | 327R09-18 18UN-THM 1025 |
| Catalog Number | 6010101 |
| Corner Radius | PVD |
| Country of Origin | TH |
| Finish | PVD Coated |
| Gross Weight Per Pack | 0.0100 lb |
| Hand of Insert | Right |
| Hole Diameter | 5.85 mm |
| Included Angle | 60 |
| ISO Code | 327R09-18 18UN-THM 1025 |
| Lead Angle | 6 |
| Length | 0.2303 in |
| Series | CoroMill® 327 |
| Thickness | Right |
| Thread Standard | UN |
| Thread Type | Internal |
| Threads Per Inch | 18 |
| Type | PVD Coated |
| UPC 11 | 69826254737 |
| Width | 327R09-18 18UN-THM 1025 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | 327R09-18 18UN-THM 1025 |
| Cutting Direction | Right Hand |
| Inscribed Circle | Carbide |
| Insert Size | CoroMill® 327 |
| Insert Style | 327..UN-TH |
| Manufacturer's Grade | 1025 |
| Material | Carbide |
| Material Grade | K/M/N/P/S |
| Rake | 327..UN-TH |
| Shape | 327..UN-TH |
| 16.18 mm Dia neck |
| CoroMill® 327 adaptive interface |
| 0.76 mm D maximum cutting |
| 16.18 mm Dia body |
| 0 deg body half taper |
| 10.62 mm Dia core at face |
| Without coolant entry |
| 17.7 mm Dia cutting |
| Standard flute |
| EFW feed direction |
| 0 deg neutral helix flute |
| 90 deg cutting edge |
| 5.1 mm L body |
| 5.1 mm L functional |
| 5.85 mm L usable |
| 5.85 mm maximum overhang |
| UN60 thread form |
| 18 TPI |
| INT thread |
| 6 effective cutting edge |
