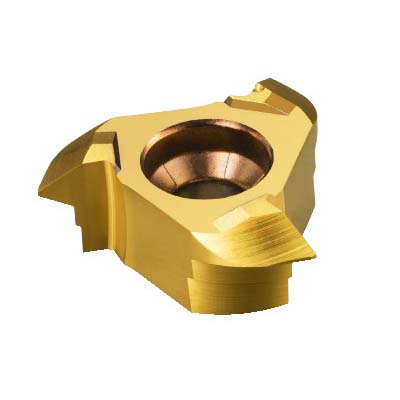

Sandvik Coromant 6010092 CoroMill® 327 Thread Milling Head, 327R09-18 14UN-TH 1025, 327..UN-TH Insert, Carbide, 1025, 327R09-18 14UN-TH 1025
Custom_Product_Images_Illustration
Sandvik Coromant 6010092 CoroMill® 327 Thread Milling Head, 327R09-18 14UN-TH 1025, 327..UN-TH Insert, Carbide, 1025, 327R09-18 14UN-TH 1025
SKU1231359
MFGR #6010092
Your Cost: $100.71/ea
List: Sandvik Coromant Thread Milling Head, Series: CoroMill® 327, 327..UN-TH Insert, 0.2303 in Length, Manufacturer's Grade: 1025, ANSI Code: 327R09-18 14UN-TH 1025, ISO Code: 327R09-18 14UN-TH 1025, Right Hand, Carbide, PVD Coated, Material Grade: K/M/N/P/S
Sandvik Coromant Thread Milling Head, Series: CoroMill® 327, 327..UN-TH Insert, 0.2303 in Length, Manufacturer's Grade: 1025, ANSI Code: 327R09-18 14UN-TH 1025, ISO Code: 327R09-18 14UN-TH 1025, Right Hand, Carbide, PVD Coated, Material Grade: K/M/N/P/S
Alternate Catalog Number 327R09-18 14UN-TH 1025 ANSI Code 327R09-18 14UN-TH 1025 Catalog Number 6010092 Corner Radius PVD Country of Origin TH Finish PVD Coated Gross Weight Per Pack 0.0100 lb Hand of Insert Right Hole Diameter 5.85 mm ISO Code 327R09-18 14UN-TH 1025 Item Group 350 Lead Angle 3 Length 0.2303 in Series CoroMill® 327 Thickness 327..UN-TH Type Right UPC 11 69826254728 Width 5.85 mm Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker 327R09-18 14UN-TH 1025 Inscribed Circle 1025 Insert Size PVD Coated Insert Style 327..UN-TH Manufacturer's Grade 1025 Material Carbide Material Grade K/M/N/P/S Rake 327..UN-TH Shape 327R09-18 14UN-TH 1025 15.72 mm Dia neck CoroMill® 327 adaptive interface 0.99 mm maximum cutting depth 15.72 mm Dia body 0 deg body half taper 10.62 mm Dia core at face Without coolant entry 17.7 mm Dia cutting Standard flute EFW feed direction 0 deg neutral helix flute 90 deg cutting edge 4.95 mm L body 4.95 mm L functional 5.85 mm L usable 5.85 mm maximum overhang UN60 thread form 14 TPI INT thread 3 effective cutting edge
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | 327R09-18 14UN-TH 1025 |
| ANSI Code | 327R09-18 14UN-TH 1025 |
| Catalog Number | 6010092 |
| Corner Radius | PVD |
| Country of Origin | TH |
| Finish | PVD Coated |
| Gross Weight Per Pack | 0.0100 lb |
| Hand of Insert | Right |
| Hole Diameter | 5.85 mm |
| ISO Code | 327R09-18 14UN-TH 1025 |
| Item Group | 350 |
| Lead Angle | 3 |
| Length | 0.2303 in |
| Series | CoroMill® 327 |
| Thickness | 327..UN-TH |
| Type | Right |
| UPC 11 | 69826254728 |
| Width | 5.85 mm |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | 327R09-18 14UN-TH 1025 |
| Inscribed Circle | 1025 |
| Insert Size | PVD Coated |
| Insert Style | 327..UN-TH |
| Manufacturer's Grade | 1025 |
| Material | Carbide |
| Material Grade | K/M/N/P/S |
| Rake | 327..UN-TH |
| Shape | 327R09-18 14UN-TH 1025 |
| 15.72 mm Dia neck |
| CoroMill® 327 adaptive interface |
| 0.99 mm maximum cutting depth |
| 15.72 mm Dia body |
| 0 deg body half taper |
| 10.62 mm Dia core at face |
| Without coolant entry |
| 17.7 mm Dia cutting |
| Standard flute |
| EFW feed direction |
| 0 deg neutral helix flute |
| 90 deg cutting edge |
| 4.95 mm L body |
| 4.95 mm L functional |
| 5.85 mm L usable |
| 5.85 mm maximum overhang |
| UN60 thread form |
| 14 TPI |
| INT thread |
| 3 effective cutting edge |
