Sandvik Coromant

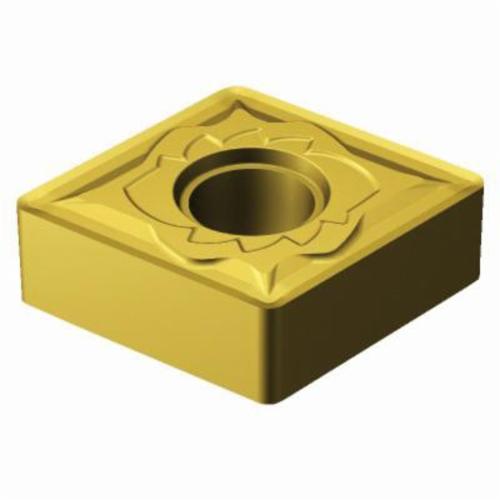

Sandvik Coromant 5966257 T-Max® P Negative Basic Shape Turning Insert, CNMG433-SMR 2025, C-80 deg Diamond, CNMG Insert, 2025
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 5966257 T-Max® P Negative Basic Shape Turning Insert, CNMG433-SMR 2025, C-80 deg Diamond, CNMG Insert, 2025
SKU1242033
MFGR #5966257
Your Cost: $15.99/ea
List: Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, CNMG Insert, C-80 deg Diamond, 4 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 0.1874 in Thickness, 0.5077 in Length, SMR Chipbreaker, 0.0468 in Corner Radius, 0.2029 in Hole Dia, Manufacturer's Grade: 2025, ANSI Code: CNMG433-SMR 2025, ISO Code: CNMG120412-SMR 2025, 80 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: M
Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, CNMG Insert, C-80 deg Diamond, 4 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 0.1874 in Thickness, 0.5077 in Length, SMR Chipbreaker, 0.0468 in Corner Radius, 0.2029 in Hole Dia, Manufacturer's Grade: 2025, ANSI Code: CNMG433-SMR 2025, ISO Code: CNMG120412-SMR 2025, 80 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: M
Alternate Catalog Number CNMG433-SMR 2025 ANSI Code CNMG433-SMR 2025 Catalog Number 5966257 Corner Radius 0.047 in Country of Origin SE Finish CVD-TiCN+Al2O3+TiN Coated Gross Weight Per Pack 0.2300 lb Hole Diameter 0.203 in Included Angle 80 ° ISO Code CNMG120412-SMR 2025 Item Group 110 Relief Angle 0 ° Series T-Max® P Thickness 0.187 in UPC 11 69826254259 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker SMR Cutting Direction Neutral For Use On Stainless Steel Inscribed Circle 1/2 in Insert Size 433 Insert Style CNMG Manufacturer's Grade 2025 Material Carbide Material Grade M Maximum Depth of Cut 0.157 in Rake Negative Seat Size 12 Shape Rhombic Exceptional surface finish when turning internally or machining slender components, you can rely on the super sharp cutting edges of CoroTurn® 107 The low cutting forces and precision coolant combined with a broad range of inserts ensures high quality surface finish Wiper geometries available for high feeds and high quality surface finish Ground, super sharp insert offer for exceptional surface finish ER treated cutting edge Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials For external turning operations and internal machining 0.12 - 0.42 mm/r cutting feed
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | CNMG433-SMR 2025 |
| ANSI Code | CNMG433-SMR 2025 |
| Catalog Number | 5966257 |
| Corner Radius | 0.047 in |
| Country of Origin | SE |
| Finish | CVD-TiCN+Al2O3+TiN Coated |
| Gross Weight Per Pack | 0.2300 lb |
| Hole Diameter | 0.203 in |
| Included Angle | 80 ° |
| ISO Code | CNMG120412-SMR 2025 |
| Item Group | 110 |
| Relief Angle | 0 ° |
| Series | T-Max® P |
| Thickness | 0.187 in |
| UPC 11 | 69826254259 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | SMR |
| Cutting Direction | Neutral |
| For Use On | Stainless Steel |
| Inscribed Circle | 1/2 in |
| Insert Size | 433 |
| Insert Style | CNMG |
| Manufacturer's Grade | 2025 |
| Material | Carbide |
| Material Grade | M |
| Maximum Depth of Cut | 0.157 in |
| Rake | Negative |
| Seat Size | 12 |
| Shape | Rhombic |
| Exceptional surface finish when turning internally or machining slender components, you can rely on the super sharp cutting edges of CoroTurn® 107 |
| The low cutting forces and precision coolant combined with a broad range of inserts ensures high quality surface finish |
| Wiper geometries available for high feeds and high quality surface finish |
| Ground, super sharp insert offer for exceptional surface finish |
| ER treated cutting edge |
| Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials |
| For external turning operations and internal machining |
| 0.12 - 0.42 mm/r cutting feed |
