Sandvik Coromant

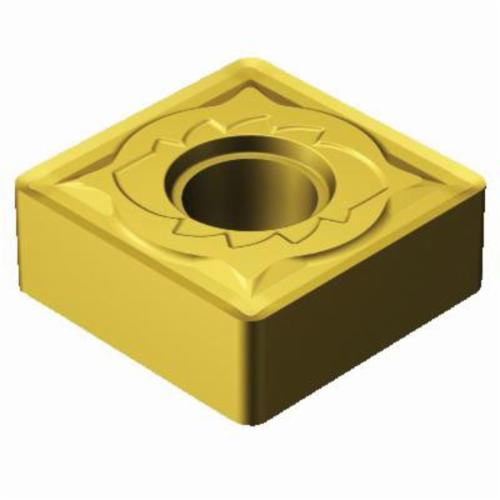

Sandvik Coromant 5966254 T-Max® P Negative Basic Shape Turning Insert, SNMG544-SMR 2025, S-Square, SNMG Insert, 2025, Carbide
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 5966254 T-Max® P Negative Basic Shape Turning Insert, SNMG544-SMR 2025, S-Square, SNMG Insert, 2025, Carbide
SKU1238644
MFGR #5966254
Your Cost: $28.07/ea
List: Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, SNMG Insert, S-Square, 8 mm Maximum Depth of Cut, 5/8 in Inscribed Circle, 1/4 in Thickness, 5/8 in Length, SMR Chipbreaker, 0.0624 in Corner Radius, 1/4 in Hole Dia, Manufacturer's Grade: 2025, ANSI Code: SNMG544-SMR 2025, ISO Code: SNMG 15 06 16-SMR 2025, 90 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: M
Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, SNMG Insert, S-Square, 8 mm Maximum Depth of Cut, 5/8 in Inscribed Circle, 1/4 in Thickness, 5/8 in Length, SMR Chipbreaker, 0.0624 in Corner Radius, 1/4 in Hole Dia, Manufacturer's Grade: 2025, ANSI Code: SNMG544-SMR 2025, ISO Code: SNMG 15 06 16-SMR 2025, 90 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: M
Alternate Catalog Number SNMG544-SMR 2025 ANSI Code SNMG544-SMR 2025 Catalog Number 5966254 Corner Radius 0.0624 in Country of Origin SE Finish CVD-TiCN+Al2O3+TiN Coated Gross Weight Per Pack 0.4800 lb Hole Diameter 1/4 in Included Angle 90 ° ISO Code SNMG 15 06 16-SMR 2025 Item Group 110 Length 5/8 in Relief Angle 0 ° Series T-Max® P Thickness 1/4 in UPC 11 69826254607 Width 5/8 in Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker SMR Cutting Direction Neutral For Use On Stainless Steel Inscribed Circle 5/8 in Insert Size 544 Insert Style SNMG Manufacturer's Grade 2025 Material Carbide Material Grade M Maximum Depth of Cut 8 mm Rake Negative Seat Size 15 Shape Square Exceptional surface finish when turning internally or machining slender components, you can rely on the super sharp cutting edges of CoroTurn® 107 The low cutting forces and precision coolant combined with a broad range of inserts ensures high quality surface finish Wiper geometries available for high feeds and high quality surface finish Ground, super sharp insert offer for exceptional surface finish Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials For external turning operations and internal machining 0.3 - 0.8 mm/r cutting feed 20 life cycle state
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | SNMG544-SMR 2025 |
| ANSI Code | SNMG544-SMR 2025 |
| Catalog Number | 5966254 |
| Corner Radius | 0.0624 in |
| Country of Origin | SE |
| Finish | CVD-TiCN+Al2O3+TiN Coated |
| Gross Weight Per Pack | 0.4800 lb |
| Hole Diameter | 1/4 in |
| Included Angle | 90 ° |
| ISO Code | SNMG 15 06 16-SMR 2025 |
| Item Group | 110 |
| Length | 5/8 in |
| Relief Angle | 0 ° |
| Series | T-Max® P |
| Thickness | 1/4 in |
| UPC 11 | 69826254607 |
| Width | 5/8 in |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | SMR |
| Cutting Direction | Neutral |
| For Use On | Stainless Steel |
| Inscribed Circle | 5/8 in |
| Insert Size | 544 |
| Insert Style | SNMG |
| Manufacturer's Grade | 2025 |
| Material | Carbide |
| Material Grade | M |
| Maximum Depth of Cut | 8 mm |
| Rake | Negative |
| Seat Size | 15 |
| Shape | Square |
| Exceptional surface finish when turning internally or machining slender components, you can rely on the super sharp cutting edges of CoroTurn® 107 |
| The low cutting forces and precision coolant combined with a broad range of inserts ensures high quality surface finish |
| Wiper geometries available for high feeds and high quality surface finish |
| Ground, super sharp insert offer for exceptional surface finish |
| Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials |
| For external turning operations and internal machining |
| 0.3 - 0.8 mm/r cutting feed |
| 20 life cycle state |
