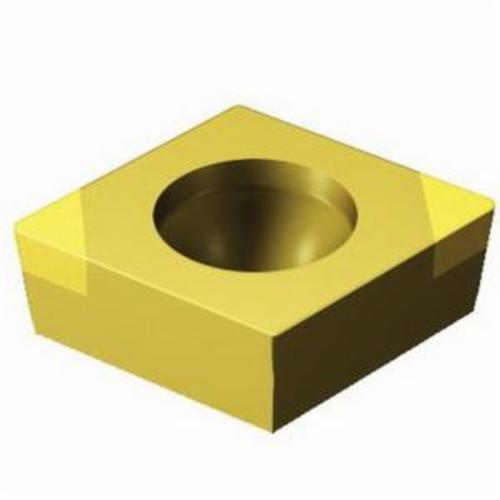

Sandvik Coromant 5965417 CoroTurn® 107 1-Sided Turning Insert, CCGW3(2.5)1T0320F 7525, C-80 deg Diamond, 7525, Carbide
CCGW Turning Inserts
1241571
MFG #: 5965417
Sandvik Coromant
103.37000
/ ea
Sandvik Coromant Turning Insert, 1-Sided, Series: CoroTurn® 107, CCGW..T..F Insert, C-80 deg Diamond, 0.2 mm Maximum Depth of Cut, 3/8 in Inscribed Circle, 0.1562 in Thickness, 0.3807 in Length, 0.0156 in Corner Radius, 0.1732 in Hole Dia, Manufacturer's Grade: 7525, ANSI Code: CCGW3(2.5)1T0320F 7525, ISO Code: CCGW09T304T01020F 7525, 80 deg Included Angle, 7 deg Relief Angle, Neutral Hand, Carbide, PVD Coated, Material Grade: H/K
- Features
| Exceptional surface finish when turning internally or machining slender components, you can rely on the super sharp cutting edges of CoroTurn® 107 |
| The low cutting forces and precision coolant combined with a broad range of inserts ensures high quality surface finish |
| Wiper geometries available for high feeds and high quality surface finish |
| Ground, super sharp insert offer for exceptional surface finish |
| 40 - 60 deg countersunk hole and flat surface clamping interface |
| 20 deg face land |
| 2.8 mm L effective cutting edge |
| G tolerance class |
| 0.05 - 0.4 mm/r cutting feed |
| 20 life cycle state |
| Sharp cutting edges and excellent chip control ensure a soft cutting action and low cutting forces, providing an excellent surface finish to the component |
| 7 deg clearance angle |
| Screw clamping ensures stability and unobstructed chip flow |
| Holders and insert geometries with conventional and CoroTurn HP design |
| For longitudinal turning and profiling |
| Positive rake |
