Sandvik Coromant

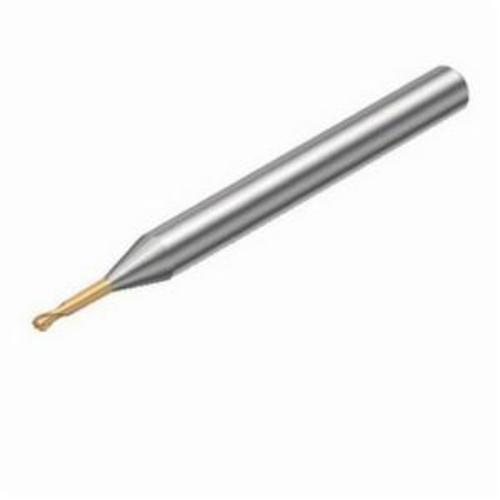

Sandvik Coromant 5963296 CoroMill® Plura Ball Nose End Mill, 0.078 in, 0.066 in Max Depth of Cut, 2 Flutes, 0.236 in Shank, 1.771 in OAL
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 5963296 CoroMill® Plura Ball Nose End Mill, 0.078 in, 0.066 in Max Depth of Cut, 2 Flutes, 0.236 in Shank, 1.771 in OAL
SKU1243811
MFGR #5963296
$/ea
Sandvik Coromant End Mill, Ball Nose, Series: CoroMill® Plura, 0.078 in Cutter Dia, 1.771 in Overall Length, 0.066 in Maximum Depth of Cut, 2 Flutes, 0.236 in Shank Dia, Right Hand Cutting, 30 deg Helix Angle, Cylindrical Shank, ANSI Code: R216.42-02030-EC20G 1700, ISO Code: R216.42-02030-EC20G 1700, Solid Carbide, PVD Coated
Sandvik Coromant End Mill, Ball Nose, Series: CoroMill® Plura, 0.078 in Cutter Dia, 1.771 in Overall Length, 0.066 in Maximum Depth of Cut, 2 Flutes, 0.236 in Shank Dia, Right Hand Cutting, 30 deg Helix Angle, Cylindrical Shank, ANSI Code: R216.42-02030-EC20G 1700, ISO Code: R216.42-02030-EC20G 1700, Solid Carbide, PVD Coated
Alternate Catalog Number R216.42-02030-EC20G 1700 ANSI Code R216.42-02030-EC20G 1700 Catalog Number 5963296 Country of Origin JP Cutting Direction Right Hand Gross Weight Per Pack 4.4100 lb Helix Angle 30 deg ISO Code R216.42-02030-EC20G 1700 Item Group 730 Material Solid Carbide Maximum Depth of Cut 0.066 in Series CoroMill® Plura Shank Type Cylindrical Standards DIN1835-A|DIN6535-HA Type Ball Nose UPC 11 69826254568 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutter Diameter 0.078 in Finish PVD Coated Number of Flutes 2 Overall Length 1.771 in Shank Diameter 0.236 in 1700 manufacturer grade 1.92 mm Dia body 0 deg body half taper Straight chip breaker 3 mm L body 1 cutting length Without coolant entry No coolant exit 1.92 mm Dia neck SFW (EFW) feed direction Right helix flute hand -6 deg radial rake 1.5 deg axial rake 3 mm L usable 9 mm overhang 0 deg lead 1 mm corner radius 15 deg ramping 80000 r/min 20 life cycle state
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | R216.42-02030-EC20G 1700 |
| ANSI Code | R216.42-02030-EC20G 1700 |
| Catalog Number | 5963296 |
| Country of Origin | JP |
| Cutting Direction | Right Hand |
| Gross Weight Per Pack | 4.4100 lb |
| Helix Angle | 30 deg |
| ISO Code | R216.42-02030-EC20G 1700 |
| Item Group | 730 |
| Material | Solid Carbide |
| Maximum Depth of Cut | 0.066 in |
| Series | CoroMill® Plura |
| Shank Type | Cylindrical |
| Standards | DIN1835-A|DIN6535-HA |
| Type | Ball Nose |
| UPC 11 | 69826254568 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutter Diameter | 0.078 in |
| Finish | PVD Coated |
| Number of Flutes | 2 |
| Overall Length | 1.771 in |
| Shank Diameter | 0.236 in |
| 1700 manufacturer grade |
| 1.92 mm Dia body |
| 0 deg body half taper |
| Straight chip breaker |
| 3 mm L body |
| 1 cutting length |
| Without coolant entry |
| No coolant exit |
| 1.92 mm Dia neck |
| SFW (EFW) feed direction |
| Right helix flute hand |
| -6 deg radial rake |
| 1.5 deg axial rake |
| 3 mm L usable |
| 9 mm overhang |
| 0 deg lead |
| 1 mm corner radius |
| 15 deg ramping |
| 80000 r/min |
| 20 life cycle state |
