Sandvik Coromant

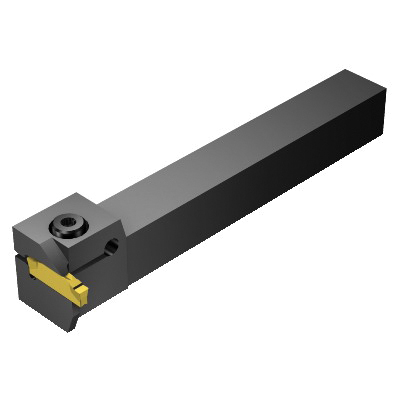

Sandvik Coromant 5963101 CoroCut® 1-2, Left Hand, N123G2-0300-0003-TF Insert, G Insert Seat
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 5963101 CoroCut® 1-2, Left Hand, N123G2-0300-0003-TF Insert, G Insert Seat
SKU1253256
MFGR #5963101
Your Cost: $273.59/ea
Sandvik Coromant Shank Tool, Series: CoroCut® 1-2, Insert Compatibility: N123G2-0300-0003-TF, LG123G028-12C, 5 in Overall Length, Rectangular Shank, 3/4 in H x 3/4 in W Shank, G Insert Seat, Left Hand Cutting, Steel
Sandvik Coromant Shank Tool, Series: CoroCut® 1-2, Insert Compatibility: N123G2-0300-0003-TF, LG123G028-12C, 5 in Overall Length, Rectangular Shank, 3/4 in H x 3/4 in W Shank, G Insert Seat, Left Hand Cutting, Steel
Alternate Catalog Number LG123G028-12C Catalog Number 5963101 Country of Origin SE Finish External Geometry LG123G028-12C Gross Weight Per Pack 0.8800 lb Head Length 3/4 in H x 3/4 in W Inscribed Circle 1.142 Item Group 480 Material Steel Maximum Workpiece Diameter G Series CoroCut® 1-2 Toolholder Type LG123G028 UPC 11 69826254402 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Clamp Type CoroCut® 1-2 Cutting Direction Left Hand Groove Width 127 mm Insert Compatibility N123G2-0300-0003-TF Insert Seat Size G Overall Length 5 in Screw Type 0.138" Shank Size 3/4 in H x 3/4 in W Shank Type Rectangular Type Steel 90 deg body workpiece side 20 life cycle state 3.5 - 7.112 mm D maximum cutting Without coolant entry No coolant exit 0 deg inclination 0 deg rake orthogonal 42.5 mm minimum overhang 3.5 Nm torque 19.05 mm W shank 29 mm W functional ANSI Code: LG123G028-12C ISO Code: LG123G028-12C
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | LG123G028-12C |
| Catalog Number | 5963101 |
| Country of Origin | SE |
| Finish | External |
| Geometry | LG123G028-12C |
| Gross Weight Per Pack | 0.8800 lb |
| Head Length | 3/4 in H x 3/4 in W |
| Inscribed Circle | 1.142 |
| Item Group | 480 |
| Material | Steel |
| Maximum Workpiece Diameter | G |
| Series | CoroCut® 1-2 |
| Toolholder Type | LG123G028 |
| UPC 11 | 69826254402 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Clamp Type | CoroCut® 1-2 |
| Cutting Direction | Left Hand |
| Groove Width | 127 mm |
| Insert Compatibility | N123G2-0300-0003-TF |
| Insert Seat Size | G |
| Overall Length | 5 in |
| Screw Type | 0.138" |
| Shank Size | 3/4 in H x 3/4 in W |
| Shank Type | Rectangular |
| Type | Steel |
| 90 deg body workpiece side |
| 20 life cycle state |
| 3.5 - 7.112 mm D maximum cutting |
| Without coolant entry |
| No coolant exit |
| 0 deg inclination |
| 0 deg rake orthogonal |
| 42.5 mm minimum overhang |
| 3.5 Nm torque |
| 19.05 mm W shank |
| 29 mm W functional |
| ANSI Code: LG123G028-12C |
| ISO Code: LG123G028-12C |
