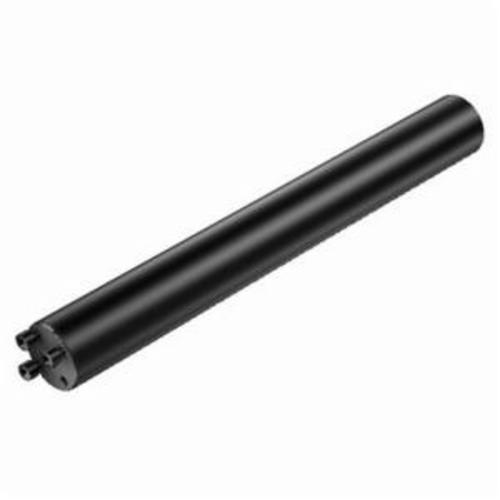

Cylindrical shank machine side adaptive interface without clamping |
Screw mounted workpiece side adaptive interface |
0 deg body workpiece side |
38.1 mm Dia body |
0 deg body half taper |
Axial concentric coolant entry |
G1/2 coolant entry thread |
70 bar coolant |
Axial concentric coolant exit |
32 mm Dia workpiece side connection |
158 mm L body |
334 mm L functional |
334 mm L protruding |
80 - 158 mm overhang |
A570-4C tool style |
3.05 mm W functional |
20 life cycle state |
ANSI Code: A570-4C D24 13-32 |
ISO Code: A570-4C D24 13-32 |
