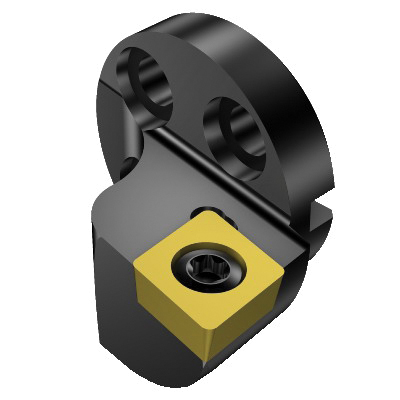

Sandvik Coromant 5962601 CoroTurn® 107 SL Screw Mounted Turning Head, 1.6456 in OAL, Left Hand, CCMT 120408 Insert
Modular Turning/Profiling Cutting Heads
908288
MFG #: 5962601
Sandvik Coromant
488.98000
/ ea
Sandvik Coromant Turning Head, SL Screw Mounted, Series: CoroTurn® 107, 1.6456 in Overall Length, 570-SCLCR/L Insert, Insert Compatibility: CCMT 120408, Left Hand Cutting, 1.0629 in Center to Cutting Edge, Steel
- Features
| 0 deg body machine side |
| 20 life cycle state |
| 0 deg body workpiece side |
| Axial concentric entry |
| 10 bar coolant pressure |
| 40 - 60 deg insert screw clamping |
| Axial inclined exit |
| 40 mm Dia connection |
| 50 mm Dia minimum bore |
| 0 deg rake orthogonal |
| 95 deg cutting edge |
| -7 deg inclination |
| 38 mm L functional |
| -5 deg lead |
| 0 deg ramping |
| C insert shape |
| 1/2 in insert seat size |
| 3 Nm torque |
| ANSI Code: 570-SCLCL-40-12 |
| ISO Code: 570-SCLCL-40-12 |
