Sandvik Coromant

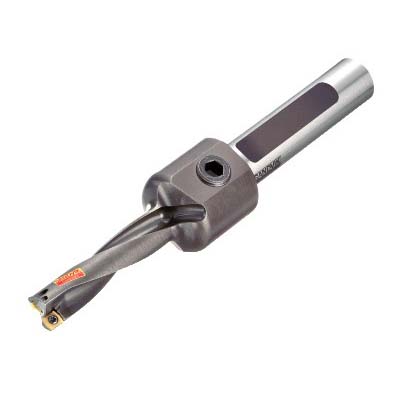

Sandvik Coromant 5962410 CoroDrill® 881 Insert Drill, 7/8 in Drill, 1-1/4 in Shank, 7.5192 in AOL, 3-1/2 in D Maximum Drill, 4
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 5962410 CoroDrill® 881 Insert Drill, 7/8 in Drill, 1-1/4 in Shank, 7.5192 in AOL, 3-1/2 in D Maximum Drill, 4
SKU1209207
MFGR #5962410
Your Cost: $797.24/ea
Sandvik Coromant Insert Drill, Series: CoroDrill® 881, 7/8 in Drill, 1-1/4 in Shank Dia, Cylinder Shank, 3-1/2 in Maximum Drill Depth, 7.5192 in Overall Length, 4 Drill Depth by Dia Ratio, Insert Compatibility: 881-04 03 08M-C-GM1 (MIIDM) and 881-04 03 08M-P-GM1 (MIIDM), 3-1/2 in Flute Length
Sandvik Coromant Insert Drill, Series: CoroDrill® 881, 7/8 in Drill, 1-1/4 in Shank Dia, Cylinder Shank, 3-1/2 in Maximum Drill Depth, 7.5192 in Overall Length, 4 Drill Depth by Dia Ratio, Insert Compatibility: 881-04 03 08M-C-GM1 (MIIDM) and 881-04 03 08M-P-GM1 (MIIDM), 3-1/2 in Flute Length
Catalog Number 5962410 Country of Origin SE Drill Depth by Diameter Ratio 4 Gage Insert CoroDrill® 881 Gross Weight Per Pack 0.6600 lb Modular Connection Size 1-1/4 Number of Drill Inserts 31.75 mm Overall Length 7.5192 in Series CoroDrill® 881 Type 881-04 03 08M-C-GM1(MIIDM),881-04 03 08M-P-GM1(MIIDM) UPC 11 69826254208 UPC 12 69826254208 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Diameter 4 Drill Size 7/8 in Flute Length 3-1/2 in Insert Compatibility 881-04 03 08M-C-GM1 (MIIDM) and 881-04 03 08M-P-GM1 (MIIDM) Maximum Drill Depth 3-1/2 in Shank Diameter 1-1/4 in Shank Length 31.75 mm Shank Type Cylinder 130.117 mm L functional 31.75 mm Dia body 76.2 mm L clamping 0.8708 mm L point 15500 r/min -0.1 mm to 0.4 mm achievable hole tolerance Decentral over flange and axial coolant entry Axial inclined coolant exit 10 bar coolant 40 - 60 deg insert screw clamping EFW feed direction SSK flute Right hand helix flute 0 deg rake orthogonal 0 deg inclination, 2 flutes 84 deg cutting edge 20 life cycle state 91.9988 mm L steel body A881..Pxx-04 tool style ANSI Code: A881-D0875P31-04
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Catalog Number | 5962410 |
| Country of Origin | SE |
| Drill Depth by Diameter Ratio | 4 |
| Gage Insert | CoroDrill® 881 |
| Gross Weight Per Pack | 0.6600 lb |
| Modular Connection Size | 1-1/4 |
| Number of Drill Inserts | 31.75 mm |
| Overall Length | 7.5192 in |
| Series | CoroDrill® 881 |
| Type | 881-04 03 08M-C-GM1(MIIDM),881-04 03 08M-P-GM1(MIIDM) |
| UPC 11 | 69826254208 |
| UPC 12 | 69826254208 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Diameter | 4 |
| Drill Size | 7/8 in |
| Flute Length | 3-1/2 in |
| Insert Compatibility | 881-04 03 08M-C-GM1 (MIIDM) and 881-04 03 08M-P-GM1 (MIIDM) |
| Maximum Drill Depth | 3-1/2 in |
| Shank Diameter | 1-1/4 in |
| Shank Length | 31.75 mm |
| Shank Type | Cylinder |
| 130.117 mm L functional |
| 31.75 mm Dia body |
| 76.2 mm L clamping |
| 0.8708 mm L point |
| 15500 r/min |
| -0.1 mm to 0.4 mm achievable hole tolerance |
| Decentral over flange and axial coolant entry |
| Axial inclined coolant exit |
| 10 bar coolant |
| 40 - 60 deg insert screw clamping |
| EFW feed direction |
| SSK flute |
| Right hand helix flute |
| 0 deg rake orthogonal |
| 0 deg inclination, 2 flutes |
| 84 deg cutting edge |
| 20 life cycle state |
| 91.9988 mm L steel body |
| A881..Pxx-04 tool style |
| ANSI Code: A881-D0875P31-04 |
