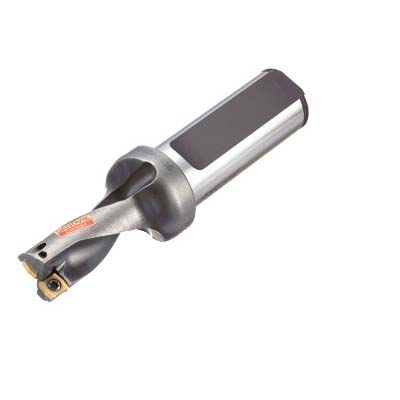

Sandvik Coromant 5962405 CoroDrill® 881 Insert Drill, 7/8 in Drill, 1 in Shank, 4.8347 in AOL, 1-3/4 in D Maximum Drill, 2
Indexable Drills
1248602
MFG #: 5962405
Sandvik Coromant
824.65000
/ ea
Sandvik Coromant Insert Drill, Series: CoroDrill® 881, 7/8 in Drill, 1 in Shank Dia, Cylinder Shank, 1-3/4 in Maximum Drill Depth, 4.8347 in Overall Length, 2 Drill Depth by Dia Ratio, Insert Compatibility: 881-04 03 08M-C-GM1 (MIIDM) and 881-04 03 08M-P-GM1 (MIIDM), 1-3/4 in Flute Length
- Features
| 65.9312 mm L functional |
| 25.4 mm Dia body |
| 56 mm L clamping |
| 0.8708 mm L point |
| 16000 r/min |
| -0.1 to 0.3 mm achievable hole tolerance |
| Axial concentric coolant entry |
| Axial inclined coolant exit |
| 10 bar coolant |
| 40 - 60 deg insert screw clamping |
| EFW feed direction |
| SSK flute |
| Right hand helix flute |
| 0 deg rake orthogonal |
| 23.4 mm H shank |
| 0 deg inclination, 2 flutes |
| 84 deg cutting edge |
| 20 life cycle state |
| 47.8028 mm L steel body |
| A881..LXxx-02 tool style |
