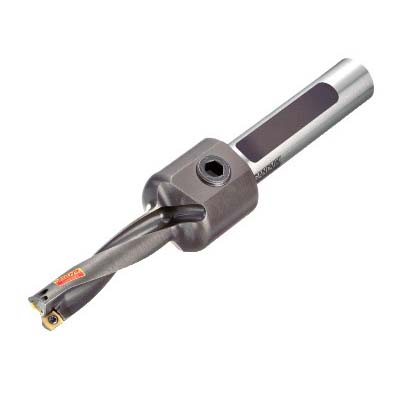

Sandvik Coromant 5962392 CoroDrill® 881 Insert Drill, 0.687 in Drill, 1 in Shank, 7.2913 in AOL, 2.7479 in D Maximum Drill, 4
Indexable Drills
1209204
MFG #: 5962392
Sandvik Coromant
757.43000
/ ea
Sandvik Coromant Insert Drill, Series: CoroDrill® 881, 0.687 in Drill, 1 in Shank Dia, Cylinder Shank, 2.7479 in Maximum Drill Depth, 7.2913 in Overall Length, 4 Drill Depth by Dia Ratio, Insert Compatibility: 881-03 03 08M-C-GM1 (MIIDM) and 881-03 03 08M-P-GM1 (MIIDM), 2.7479 in Flute Length
- Features
| 108.2665 mm L functional |
| 25.4 mm Dia body |
| 76.2 mm L clamping |
| 0.7249 mm L point |
| 19000 r/min |
| -0.1 mm to 0.4 mm achievable hole tolerance |
| Decentral over flange and axial coolant entry |
| Axial inclined coolant exit |
| 10 bar coolant |
| 40 - 60 deg insert screw clamping |
| EFW feed direction |
| SSK flute |
| Right hand helix flute |
| 0 deg rake orthogonal |
| 0 deg inclination, 2 flutes |
| 84 deg cutting edge |
| 20 life cycle state |
| 72.9996 mm L steel body |
| A881..Pxx-04 tool style |
| ANSI Code: A881-D0687P25-04 |
