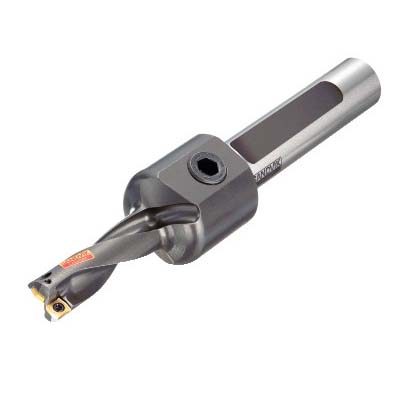

Sandvik Coromant 5962391 CoroDrill® 881 Insert Drill, 0.687 in Drill, 1 in Shank, 2.0609 in Maximum Drill, 3
Custom_Product_Images_Illustration
Sandvik Coromant 5962391 CoroDrill® 881 Insert Drill, 0.687 in Drill, 1 in Shank, 2.0609 in Maximum Drill, 3
SKU1209203
MFGR #5962391
Your Cost: $659.02/ea
Sandvik Coromant Insert Drill, Series: CoroDrill® 881, 0.687 in Drill, 1 in Shank Dia, Cylinder Shank, 2.0609 in Maximum Drill Depth, 5.8267 in Overall Length, 3 Drill Depth by Dia Ratio, Insert Compatibility: 881-03 03 08M-C-GM1 (MIIDM) and 881-03 03 08M-P-GM1 (MIIDM), 2.0609 in Flute Length
Sandvik Coromant Insert Drill, Series: CoroDrill® 881, 0.687 in Drill, 1 in Shank Dia, Cylinder Shank, 2.0609 in Maximum Drill Depth, 5.8267 in Overall Length, 3 Drill Depth by Dia Ratio, Insert Compatibility: 881-03 03 08M-C-GM1 (MIIDM) and 881-03 03 08M-P-GM1 (MIIDM), 2.0609 in Flute Length
Catalog Number 5962391 Country of Origin SE Drill Depth by Diameter Ratio 3 Gage Insert CoroDrill® 881 Gross Weight Per Pack 0.6600 lb Number of Drill Inserts 25.4 mm Overall Length 5.8267 in Series CoroDrill® 881 Type CoroDrill® 881 UPC 11 69826254189 UPC 12 69826254189 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer SANDVIK COROMANT CO Diameter 147.999 mm Drill Size 0.687 in Flute Length 2.0609 in Insert Compatibility 881-03 03 08M-C-GM1 (MIIDM) and 881-03 03 08M-P-GM1 (MIIDM) Maximum Drill Depth 2.0609 in Shank Diameter 1 in Shank Length 25.4 mm Shank Type Cylinder 91.2739 mm L functional 25.4 mm Dia body 76.2 mm L clamping 0.7249 mm L point 21500 r/min -0.1 to 0.3 mm achievable hole tolerance Decentral over flange and axial coolant entry Axial inclined coolant exit 10 bar coolant 40 - 60 deg insert screw clamping EFW feed direction SSK flute Right hand helix flute 0 deg rake orthogonal 0 deg inclination, 2 flutes 84 deg cutting edge 20 life cycle state 56.007 mm L steel body A881..Pxx-03 tool style ANSI Code: A881-D0687P25-03
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Catalog Number | 5962391 |
| Country of Origin | SE |
| Drill Depth by Diameter Ratio | 3 |
| Gage Insert | CoroDrill® 881 |
| Gross Weight Per Pack | 0.6600 lb |
| Number of Drill Inserts | 25.4 mm |
| Overall Length | 5.8267 in |
| Series | CoroDrill® 881 |
| Type | CoroDrill® 881 |
| UPC 11 | 69826254189 |
| UPC 12 | 69826254189 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | SANDVIK COROMANT CO |
| Diameter | 147.999 mm |
| Drill Size | 0.687 in |
| Flute Length | 2.0609 in |
| Insert Compatibility | 881-03 03 08M-C-GM1 (MIIDM) and 881-03 03 08M-P-GM1 (MIIDM) |
| Maximum Drill Depth | 2.0609 in |
| Shank Diameter | 1 in |
| Shank Length | 25.4 mm |
| Shank Type | Cylinder |
| 91.2739 mm L functional |
| 25.4 mm Dia body |
| 76.2 mm L clamping |
| 0.7249 mm L point |
| 21500 r/min |
| -0.1 to 0.3 mm achievable hole tolerance |
| Decentral over flange and axial coolant entry |
| Axial inclined coolant exit |
| 10 bar coolant |
| 40 - 60 deg insert screw clamping |
| EFW feed direction |
| SSK flute |
| Right hand helix flute |
| 0 deg rake orthogonal |
| 0 deg inclination, 2 flutes |
| 84 deg cutting edge |
| 20 life cycle state |
| 56.007 mm L steel body |
| A881..Pxx-03 tool style |
| ANSI Code: A881-D0687P25-03 |
