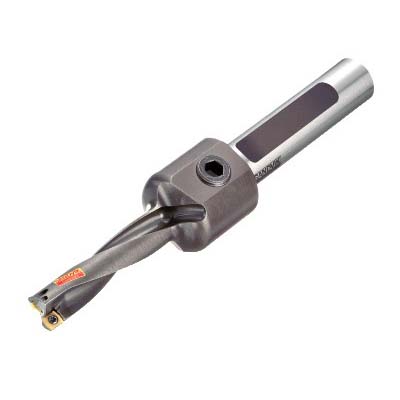

Sandvik Coromant 5962374 CoroDrill® 881 Insert Drill, 0.562 in Drill, 3/4 in Shank, 5.6685 in AOL, 2.2479 in D Maximum Drill, 4
Custom_Product_Images_Illustration
Sandvik Coromant 5962374 CoroDrill® 881 Insert Drill, 0.562 in Drill, 3/4 in Shank, 5.6685 in AOL, 2.2479 in D Maximum Drill, 4
SKU1248495
MFGR #5962374
$/ea
Sandvik Coromant Insert Drill, Series: CoroDrill® 881, 0.562 in Drill, 3/4 in Shank Dia, Cylinder Shank, 2.2479 in Maximum Drill Depth, 5.6685 in Overall Length, 4 Drill Depth by Dia Ratio, Insert Compatibility: 881-02 02 04M-C-GM1 (MIIDM) and 881-02 02 04M-P-GM1 (MIIDM), 2.2479 in Flute Length
Sandvik Coromant Insert Drill, Series: CoroDrill® 881, 0.562 in Drill, 3/4 in Shank Dia, Cylinder Shank, 2.2479 in Maximum Drill Depth, 5.6685 in Overall Length, 4 Drill Depth by Dia Ratio, Insert Compatibility: 881-02 02 04M-C-GM1 (MIIDM) and 881-02 02 04M-P-GM1 (MIIDM), 2.2479 in Flute Length
Catalog Number 5962374 Country of Origin SE Drill Depth by Diameter Ratio 4 Gage Insert CoroDrill® 881 Gross Weight Per Pack 0.4400 lb Modular Connection Size 3/4 Number of Drill Inserts 19.05 mm Overall Length 5.6685 in Series CoroDrill® 881 Type 19.05 mm UPC 11 69826254172 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer SANDVIK COROMANT CO Diameter 57.0992 mm Drill Size 0.562 in Flute Length 2.2479 in Insert Compatibility 881-02 02 04M-C-GM1 (MIIDM) and 881-02 02 04M-P-GM1 (MIIDM) Maximum Drill Depth 2.2479 in Shank Diameter 3/4 in Shank Length CoroDrill® 881 Shank Type Cylinder 93.7076 mm L functional 19.05 mm Dia body 76.2 mm L clamping 0.2724 mm L point 19000 r/min -0.1 mm to 0.4 mm achievable hole tolerance Decentral over flange and axial coolant entry Axial inclined coolant exit 10 bar coolant 40 - 60 deg insert screw clamping EFW feed direction SSK flute Right hand helix flute 0 deg rake orthogonal 0 deg inclination, 2 flutes 84 deg cutting edge 20 life cycle state 59.9948 mm L steel body A881..Pxx-04 tool style ANSI Code: A881-D0562P19-04
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Catalog Number | 5962374 |
| Country of Origin | SE |
| Drill Depth by Diameter Ratio | 4 |
| Gage Insert | CoroDrill® 881 |
| Gross Weight Per Pack | 0.4400 lb |
| Modular Connection Size | 3/4 |
| Number of Drill Inserts | 19.05 mm |
| Overall Length | 5.6685 in |
| Series | CoroDrill® 881 |
| Type | 19.05 mm |
| UPC 11 | 69826254172 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | SANDVIK COROMANT CO |
| Diameter | 57.0992 mm |
| Drill Size | 0.562 in |
| Flute Length | 2.2479 in |
| Insert Compatibility | 881-02 02 04M-C-GM1 (MIIDM) and 881-02 02 04M-P-GM1 (MIIDM) |
| Maximum Drill Depth | 2.2479 in |
| Shank Diameter | 3/4 in |
| Shank Length | CoroDrill® 881 |
| Shank Type | Cylinder |
| 93.7076 mm L functional |
| 19.05 mm Dia body |
| 76.2 mm L clamping |
| 0.2724 mm L point |
| 19000 r/min |
| -0.1 mm to 0.4 mm achievable hole tolerance |
| Decentral over flange and axial coolant entry |
| Axial inclined coolant exit |
| 10 bar coolant |
| 40 - 60 deg insert screw clamping |
| EFW feed direction |
| SSK flute |
| Right hand helix flute |
| 0 deg rake orthogonal |
| 0 deg inclination, 2 flutes |
| 84 deg cutting edge |
| 20 life cycle state |
| 59.9948 mm L steel body |
| A881..Pxx-04 tool style |
| ANSI Code: A881-D0562P19-04 |
